4X Dedicated USB 3.0 5Gbps Channel,20Gbps Bandwidth,8-Ports Superspeed 5Gbps USB 3.0 PCIE Expansion Card

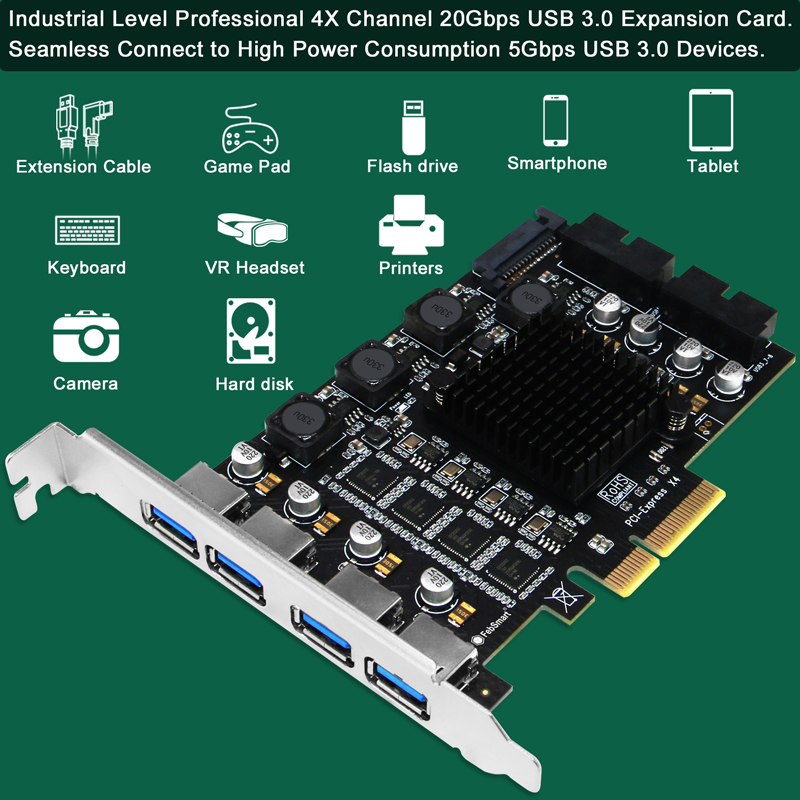

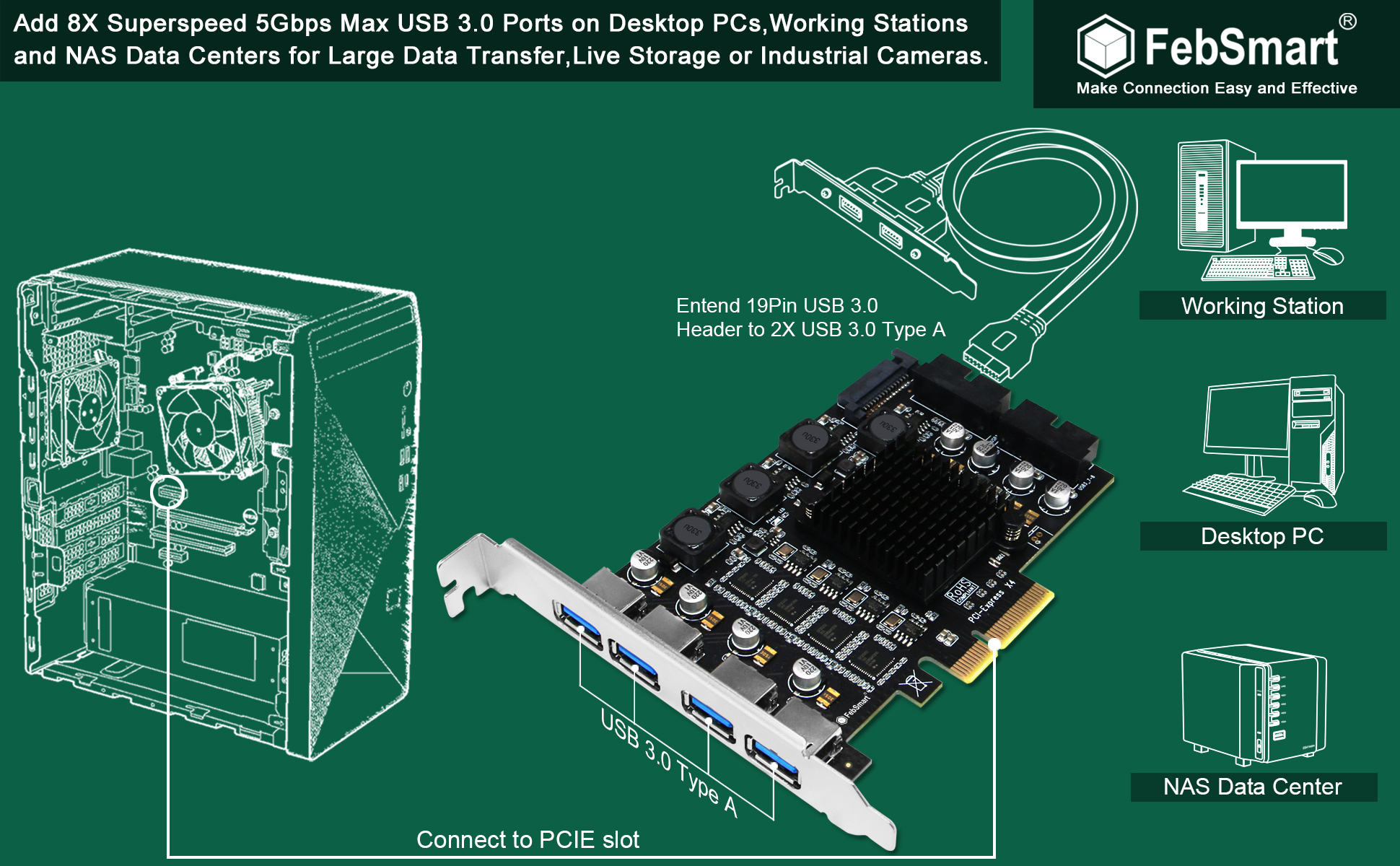

 1. FS-4C-U8-Pro is a PCIE X4 interface to 8-Ports USB 3.0 expansion card. Allow users add 4X dedicated USB 3.0 5Gbps channels, 20Gbps total bandwidth on 8X superspeed 5Gbps max USB 3.0 ports. It is mainly used on Desktop PCs, Working Stations, and NAS data centers for high-bandwidth USB 3.0 devices which including USB industrial cameras, USB VR-Systems, USB 3.0 NVME enclosures, USB live broadcast devices, USB 3.0 SSD/HDD enclosures, USB 3.0 video adapters and USB 3.0 universal docking stations.

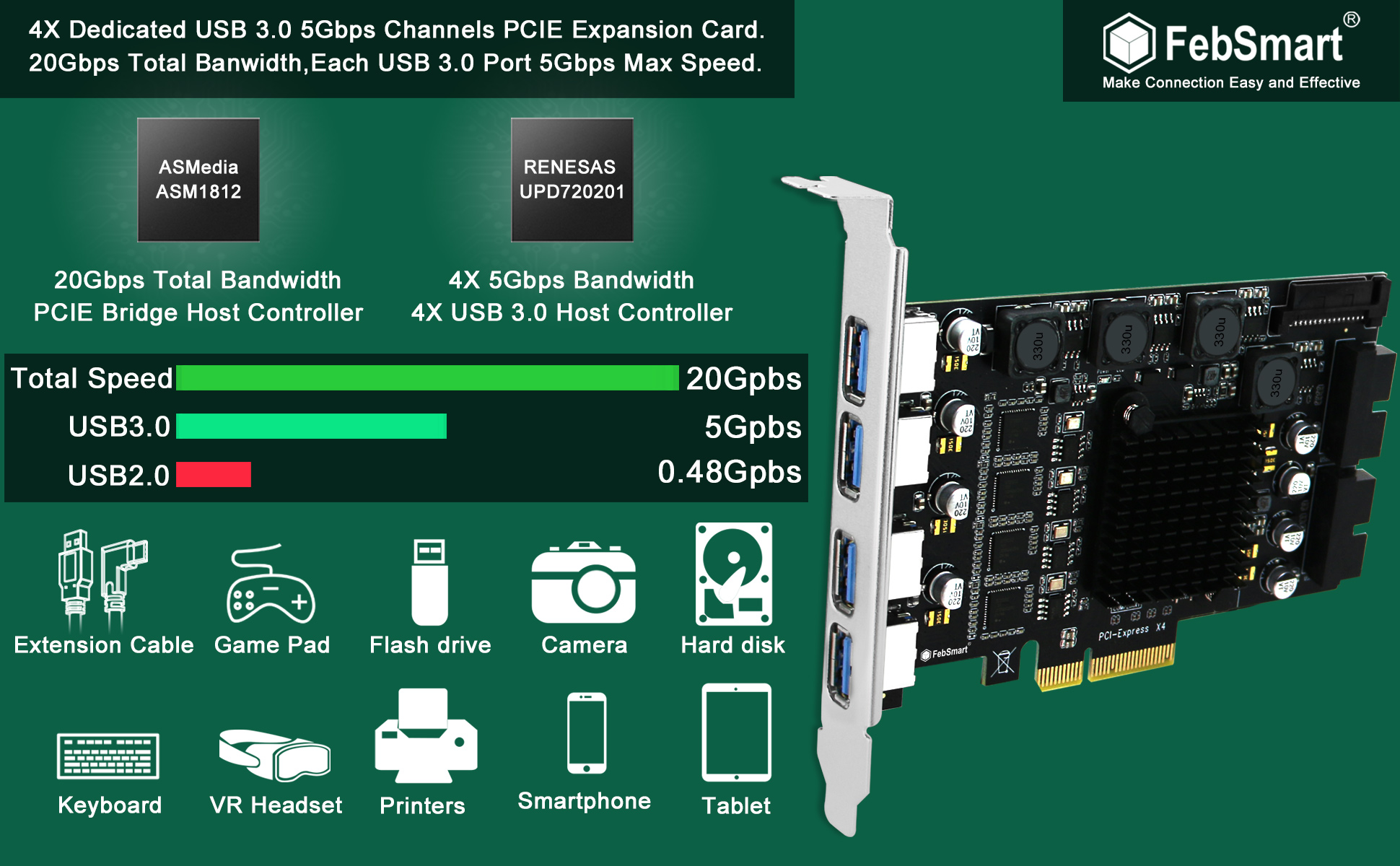

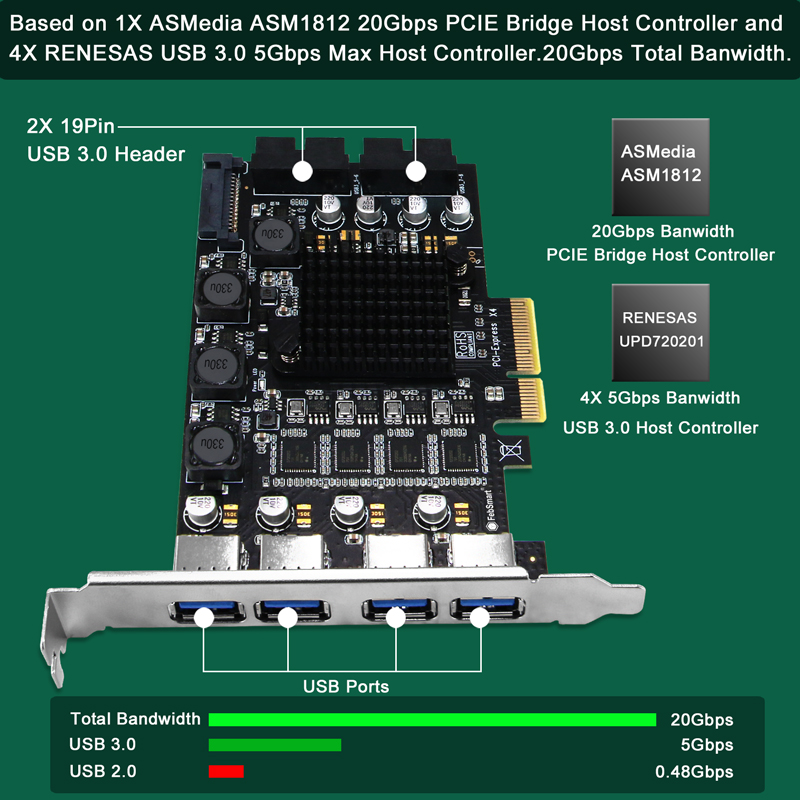

2. Based on 1X ASMedia ASM1812 20Gbps PCIE bridge controller and 4X RENESAS UPD720201 USB 3.0 host controller. Provide 4X independent USB 3.0 5Gbps channels, 20Gbps total bandwidth. 4X external USB-A and 2X internal 19Pin USB 3.0 header (2X 19Pin USB 3.0 header will extend to 4X USB-A ports on Desktop PCs front panel), 8X USB 3.0 5Gbps max ports in total. 1X external USB 3.0 port and 1X internal USB 3.0 port will share 1X USB 3.0 5Gbps bandwidth. 8X USB 3.0 Ports will share 20Gbps bandwidth.
3. Built in FebSmart Self-Powered Technology, no need to plug any additional power cables from PCs power supply unit. Allow each USB 3.0 channel 2X USB 3.0 ports get 5V/3A 15W (5V/12A 60W in total) power supply from motherboard directly for connected high power consumption USB 3.0 devices. FebSmart add 8X electronic safety fuse, 8X voltage stable capacitor and 4X voltage stable inductance on the USB expansion card, will protect user’s data and USB devices, make sure safe connection than ever.

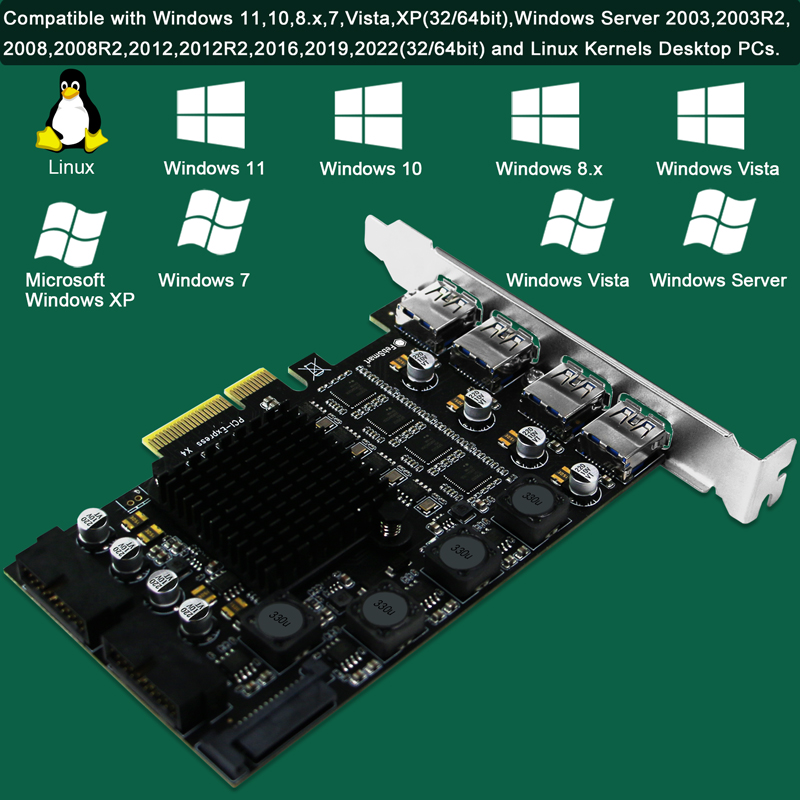

4. Compatible System: 1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems. 2. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems. 3. Plug and Play on most Linux kernels. 4. NOT support MAC OS X.
5. PCIE X4 interface design, will works on PCIE X4, X8, X16 slot. Do not work on PCIE X1, X2 slot, do not work on PCI slot. Based on PCIE 2.0 standard, will compatible with PCIE 1.x, 2.x, 3.x, 4.x PCIE slot. The full height bracket mounted on this PCIE USB 3.0 expansion card, will works on Standard Size Desktop PCs, do not support Slim Desktop PCs.
6. ATTENTION: 1. Must make sure Desktop PCs have one empty PCIE X16 slot before purchase. 2. Must install driver on Windows 7 (32/64bit) and previous systems. 3. Not support low profile bracket, do not work on slim PCs. 4. Please use USB 3.0 devices test connection speed, or cannot get the peak speed.

 ATTENTION:

1. Must make sure Desktop PCs have one empty PCIE X16 slot before purchase.

2. Must install driver on Windows 7 (32/64bit) and previous systems.

3. Not support low profile bracket, do not work on slim PCs.

4. Please use USB 3.0 devices test connection speed, or cannot get the peak speed.

 What is FebSmart Self-Powered Technology?

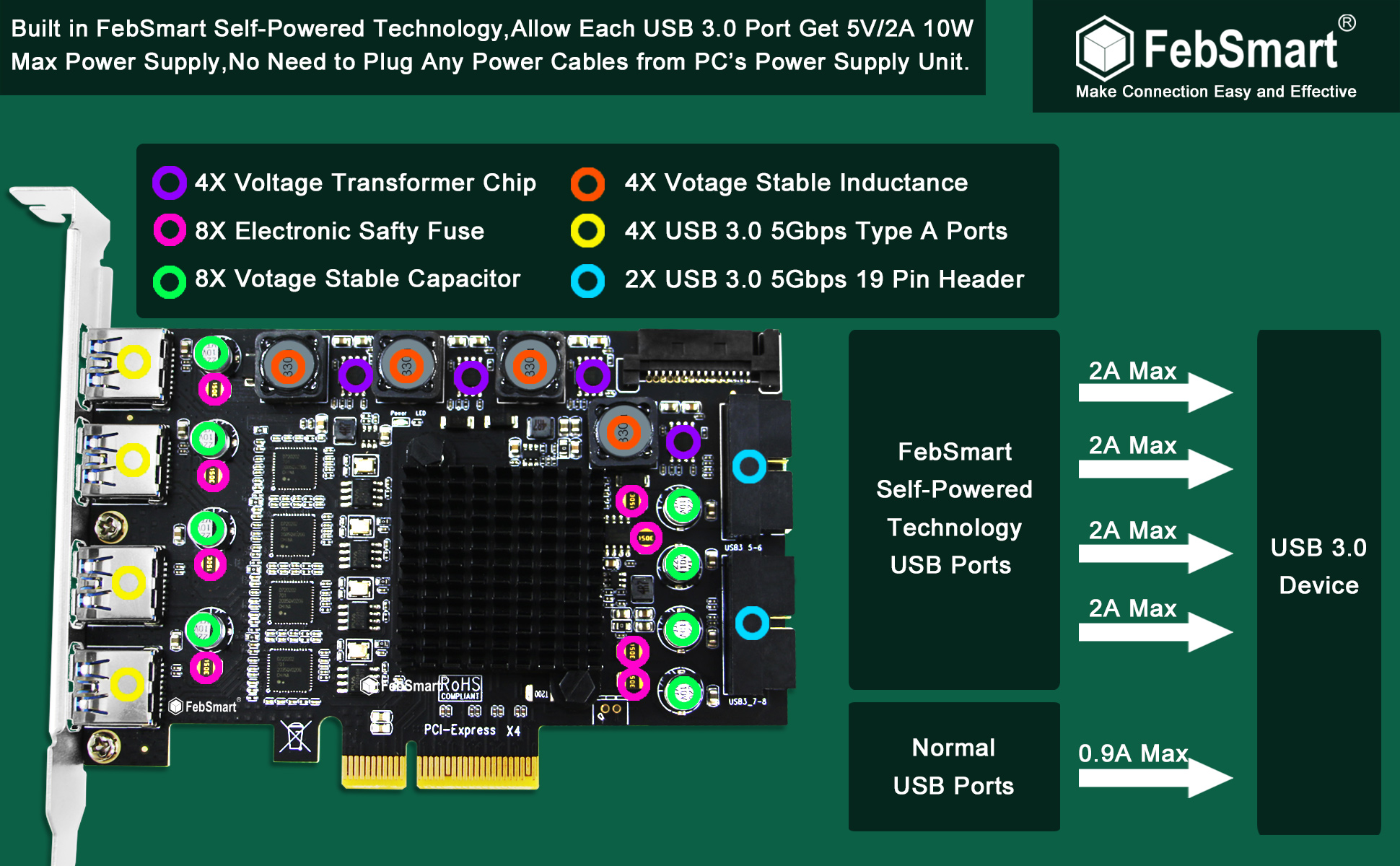

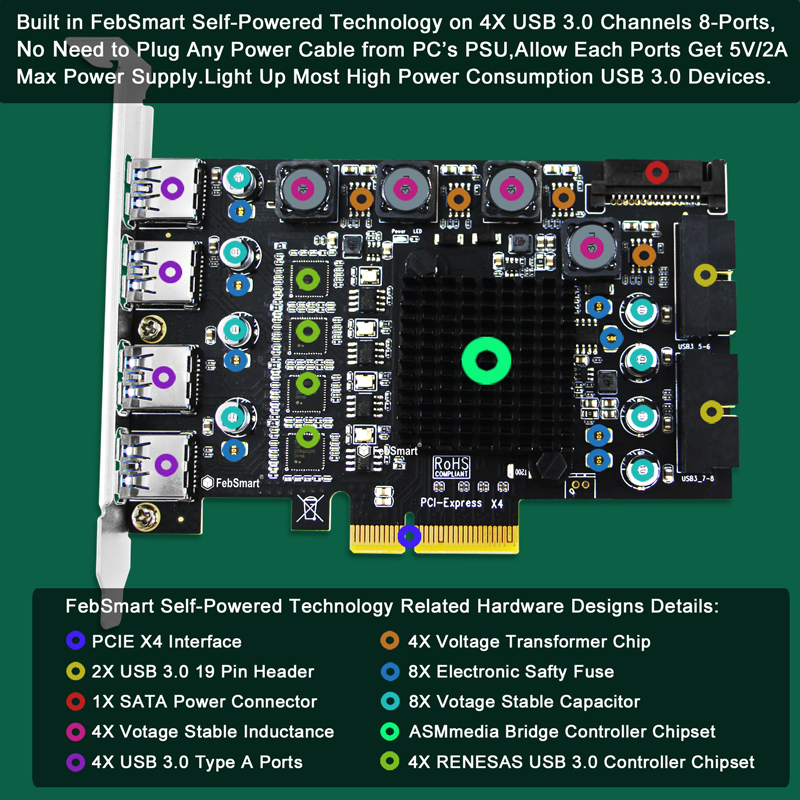

FebSmart Self-Powered Technology is a new solution to add more power supply on USB 3.0 expansion cards. The old version PCI Express USB 3.0 cards need to plug power cables from Desktop PC’s power supply unit. Even added on additional power, sometime it still lacks power when running few high power-consuming devices simultaneously such as USB HDD/SSD enclosures and USB NVME enclosures. PCI Express slot can provide 75W max power almost 12V/6.25A for PCIE devices. FebSmart add 4X voltage transformer on 4X channel USB 3.0 card. 4X independent USB 3.0 channel has 4X way power supply. Each way power supply will pick up 12V/1.25A power and convert to 5V/3A 15W. So, each USB 3.0 channel 1X Internal USB 3.0 port and 1X external USB 3.0 port will get 5V/3A 15W max power supply for USB 3.0 devices. Most of the high-power consumption devices just need 4~8W which means this USB 3.0 expansion card can light up 8X high power-consumption devices simultaneously in full speed. FebSmart built 8X electronic safty fuse, 4X voltage stable inductance and 8X voltage stable capacitors on the board, will protect users’ data and USB 3.0 devices. Never burn USB 3.0 device and never lost data. Add 4-channel 8-Ports superspeed USB 3.0 expansion card on Desktop PCs. Enjoy more stable, superspeed and safe USB 3.0 connection with FebSmart.

FebSmart also reserved 1X 15Pin SATA power connector, will make sure users can light this USB 3.0 card up once the old version motherboard PCIE slot cannot provide enough power supply.

A. Provide 4X USB 3.0 5Gbps channels, 20Gbps total bandwidth on 8X 5Gbps USB 3.0 ports. Add 8X superspeed USB 3.0 5Gbps max ports on Desktop PCs for large data transfer. Light UP 8X high-banwidth USB 3.0 devices such as USB video adapters, cameras, USB NVME enclosures, VR-Systems and more.

B. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems.Plug and Play on most Linux kernels. NOT support MAC OS X.

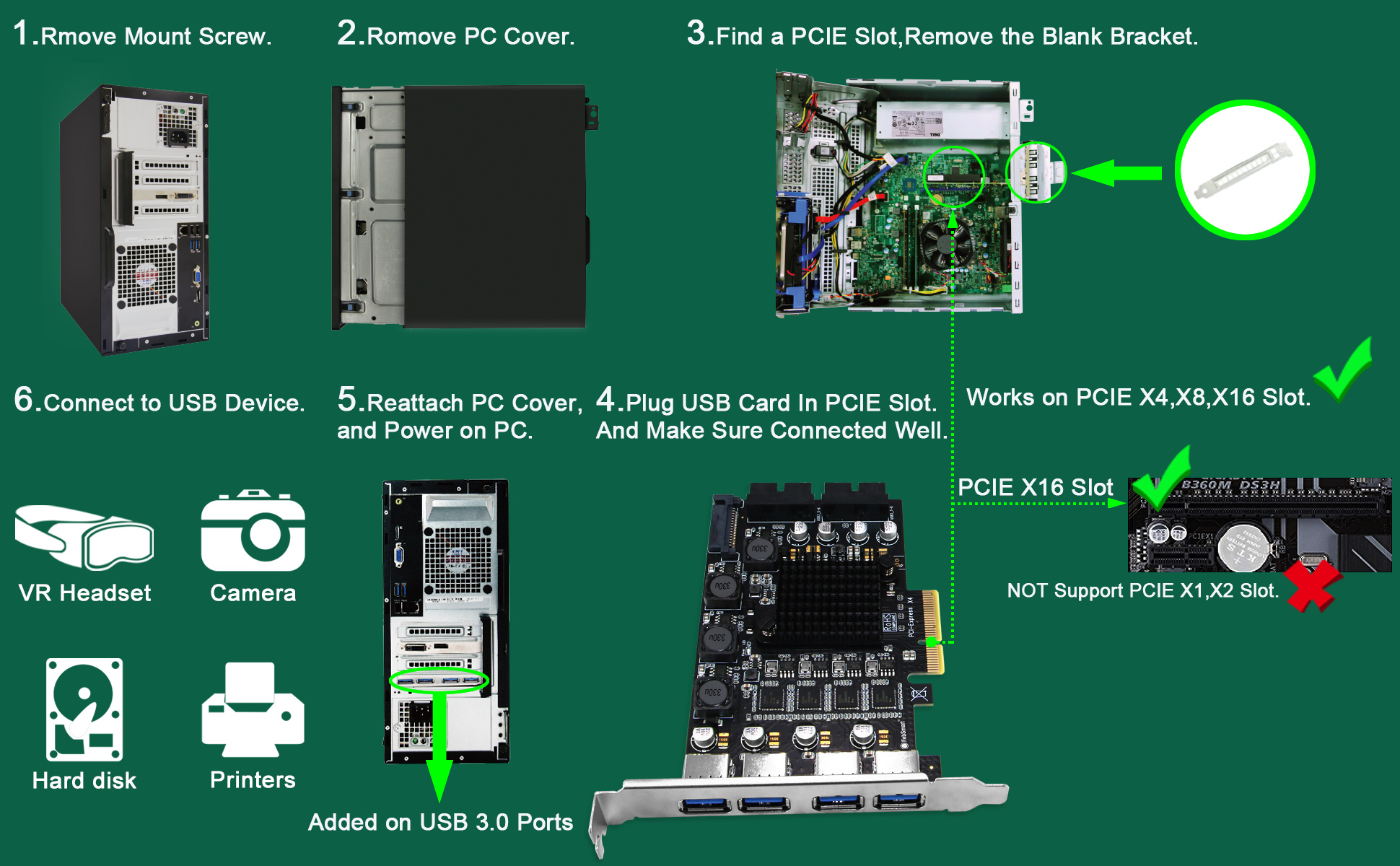

C. Super Easy to install on supported Desktop PCs, No need to plug any Power Cables, plug and play on most system.
With added 8X electronic safty fuse, 8X voltage stable capacitor and 4X Voltage stable Inductance will protect users' Data Safety and USB 3.0 Devices. Never burn USB 3.0 devices, never lost datas.

D. Based on 1X ASMedia ASM1812 20Gbps bandwidth PCIE Bridge Controller and 4X RENENSAS UPD720201 5Gbps bandwidth USB 3.0 Host Controller. Will compatible with ARM, Intel and AMD RYZEN hardware platform PCs. Desined with Heatsink, will help the PCIE USB 3.0 card core components stay away from overheat. Make sure connected devices always stay at 5Gbps max speed.

E. PCIE X4 Interface design, will compatible with PCIE X4, X8, X16 slot. NOT work on PCIEX1, X2 slot. Based on PCIE 2.0 standard, will works on PCIE 1.X, 2.X, 3.X, 4.X slot. Users must make sure motherboard have 1X empty PCIE X16 slot for this PCIE X4 USB 3.0 expansion card brfore purchase.

F. Full height Bracket mounted on the PCIE USB card, will works on Standard Size PCs. NOT support low-profile bracket, do not works on slim PCs.

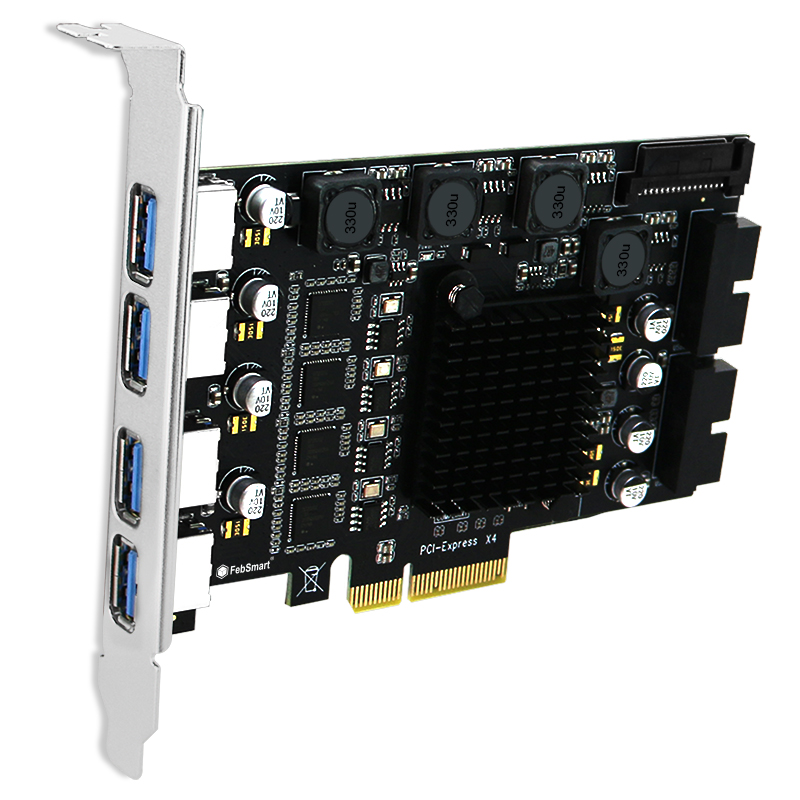

 FebSmart FS-4C-U8-Pro is a PCIE X4 interface to 8X superspeed 5Gbps USB 3.0 ports expansion card. It is based on 1X ASMedia ASM1812 20Gbps PCIE bridge controller and 4X RENESAS UPD720201 USB 3.0 5Gbps host controller, will compatible with ARM, AMD, and Intel hardware platforms. It will provide 4X independent USB 3.0 5Gbps channels, 20Gbps total banwidth on 4X external USB-A and 2X internal 19Pin USB 3.0 header interface. The 2X 19Pin USB 3.0 header will extend to 4X USB-A ports on Desktop PCs front pannel, users will get 8X superspeed 5Gbps USB 3.0 ports in total. 1X external USB 3.0 port and 1X internal USB 3.0 port will share 1X USB 3.0 5Gbps bandwidth. 8X USB 3.0 Ports will share 20Gbps bandwidth. It is built in FebSmart Self-Powered Technology, no need to plug any additional power cables from Desktop PCs power supply unit. Allow each USB 3.0 channel two USB 3.0 ports get 5V/3A 15W (5V/12A 60W in total) max power supply from motherboard directly for high power consumption USB 3.0 devices. It is mainly used on Desktop PCs, Working Stations, and NAS data centers for high-bandwidth USB 3.0 devices which including indusrial cameras, VR-Systems, USB 3.0 NVME enclosures, live broadcast devices, USB 3.0 SSD/HDD enclusures, USB 3.0 video adapters and USB 3.0 universal docking stations. It also works with normal USB-A interface devices such as USB keyboard, USB mice, USB speakers, USB KVM switch, USB HUB, USB flash drive, printers, game pad, smart phone, tablet and more. 8X 5Gbps max USB 3.0 ports with 20Gbps bandwidth will not occupy motherboard USB Main Lane Speed, it is the added-on bandwidth by PCIE X4 Main Lane.

Compatible System:

1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022 systems.

2. Need to Install Driver on Windows XP, Vista, 7 (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit) systems.

3. Plug and Play on most Linux kernels.

4. NOT support MAC OS X.

ATTENTION:

1. Must make sure Desktop PCs have one empty PCIE X16 slot before purchase.

2. Must install driver on Windows 7 (32/64bit) and previous systems.

3. Not support low profile bracket, do not work on slim PCs.

4. Please use USB 3.0 devices test connection speed, or cannot get the peak speed.

Package: 1X FS-4C-U8-Pro 1X User Manual 1X Mini CD 1X Mounting Screw
