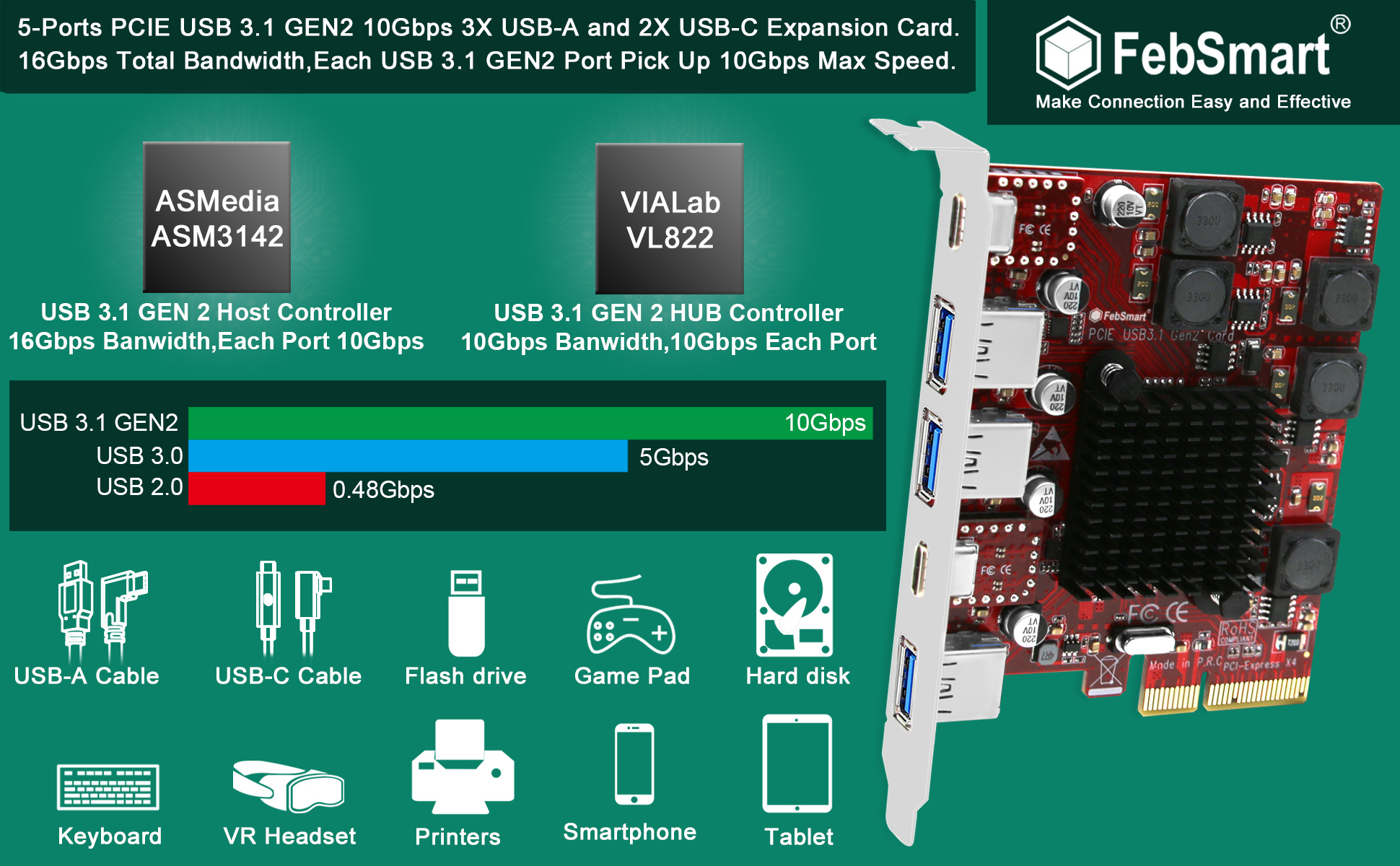

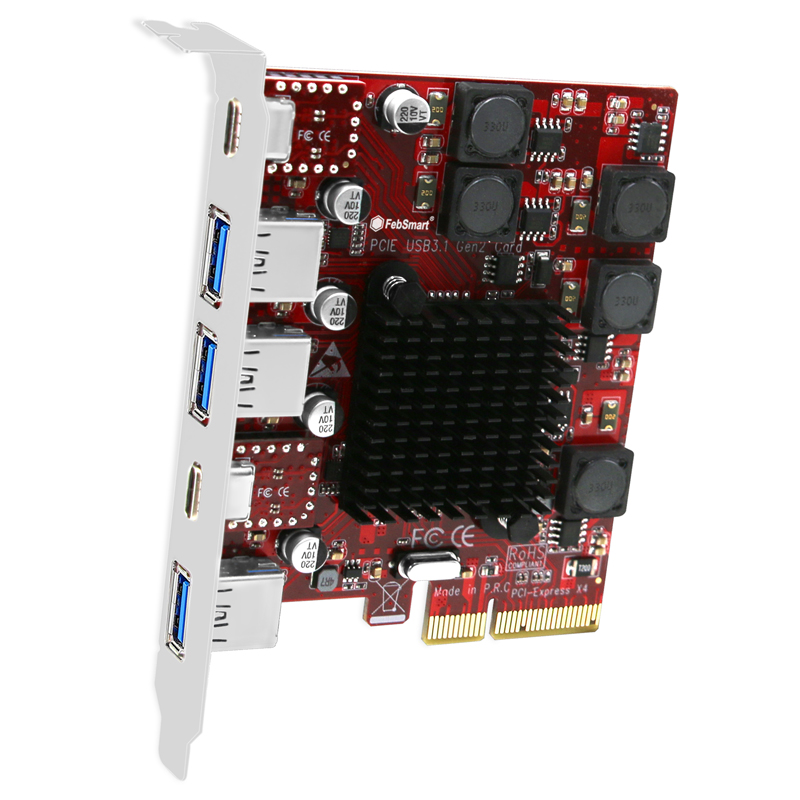

PCIE 3.0 X4 Interface to 5X USB 3.1 GEN2 10Gbps Ports Expansion Card,3X USB-A and 2X USB-C 10Gbps Ports

 1. FebSmart FS-A3C2-Pro will allow users add USB 3.1 GEN2 3X USB-A and 2X USB-C 10Gbps ports on Desktop PCs, MAC Pros and Working Stations for large data transfer and live data storage. The added-on 5X 10Gbps max ports will share 16Gbps total banwidth. Each USB-A or USB-C port can get superspeed plus 10Gbps max data tramsfer rate for high power consumption USB peripheral device, such as USB NVME SSD enclosures, USB SATA SSD/HDD enclosures, VR-System, 10Gbps USB hubs and USB 4K video adapters.
2. Built in FebSmart Self-Powered Technology. No need to plug any power cables from PCs power supply unit, but each USB 3.1 GEN2 port can get 5V/3A (5V/15A in total, support BC1.2 fast charging) max power supply. Ensure all connected USB 3.1 GEN2 high power consumption devices running on spuerspeed plus 10Gbps max. Enjoy super easy installation with Plug & Play use most Desktop PCs.

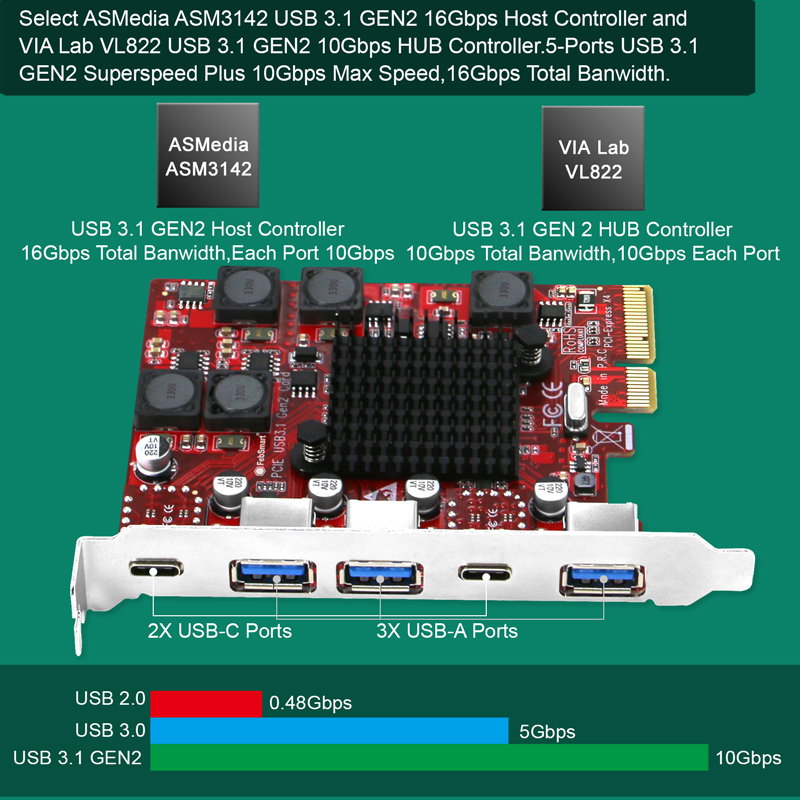

3. Based on ASMedia ASM3142 the 3rd generation 16Gbps USB 3.1 GEN2 host controller and latest ViaLab VL822 10Gbps USB 3.1 GEN2 hub controller. Supports USB 3.1 GEN2 Mutiple INs function, will auto-coordinate each USB 3.1 GEN2 port banwidth. The added-on Heat-Sink will help PCIE USB 3.1 GEN2 card core components stay away from overheat, make sure USB 3.1 GEN2 devices always stay at peak speed 10Gbps.

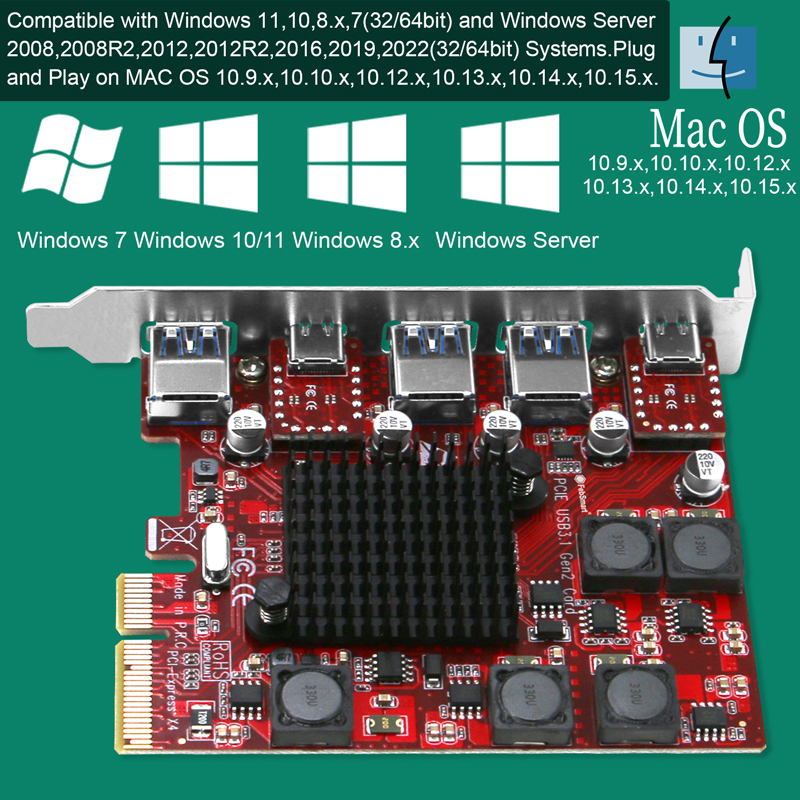

4. Compatible System: 1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022. 2. Need to install driver on Windows 7 (32/64bit) and Windows Server 2008, 2008R2(32/64bit). 3. Driver Free on MAC OS 10.9.x, 10.10.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x and later system. NOT works on MAC OS 10.11. x. 4. Supports most main stream Linux kernels.
5. ATTENTION: 1. PCIE X4 interface design, will compatible with PCIE X4, X8, X16 slot, NOT works on PCIE X1, X2 slot. 2. Please use this PCIE USB card on PCIE 3.0 slot and works with USB 3.1 GEN2 devices or can not get 10Gbps peak speed. 3. Users must make sure PCs have one PCIE X16 slot, before purchase. 4. This is not thunderbolt expansion card, have USB 3.1 GEN2 features only, the USB-C not support ALT+DP function.

 What is the FebSmart Self-Powered Technology?

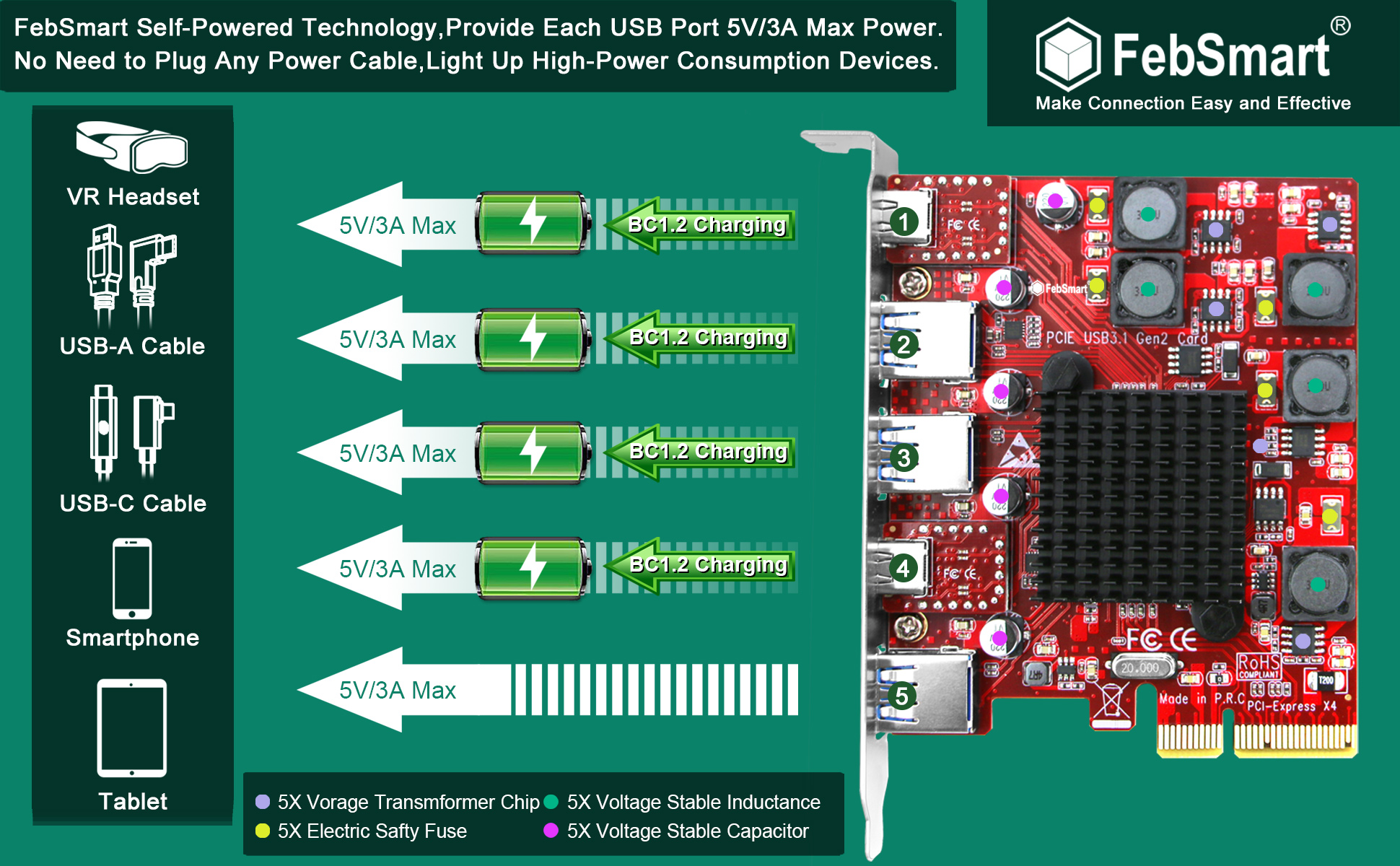

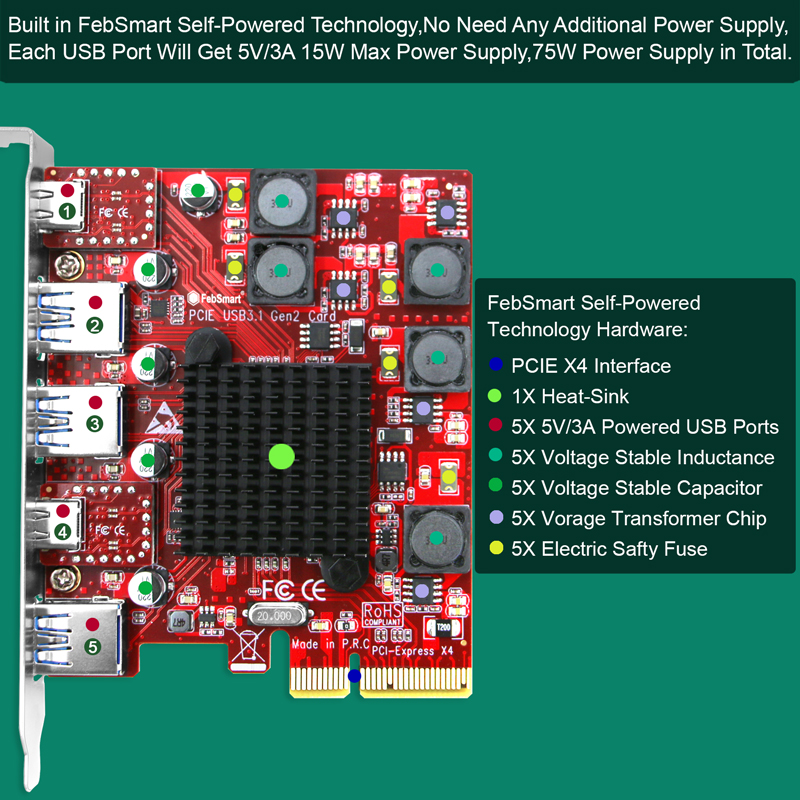

FebSmart Self-Powered Technology is a new solution to add more power supply on USB 3.1 GEN2 expansion cards. The old version PCI Express USB 3.1GEN2 card need to plug a power cable from the Desktop PCs power supply unit. Even added-on additional power, USB ports still lack power when running few high power-consuming devices simultaneously, such as NVME SSD enclosures. PCI Express slot can provide 75W max power almost 12V/6.25A. FebSmart add on 5X voltage transformer on 5X USB 3.1 GEN2 port, pick up 12/2.5A in total power and transfer to 5V/15A. Then distribute current to each USB 3.1 GEN2 port 5V/3A max power for high power consumption USB 3.1 GEN2 devices. To protect USB 3.1 GEN2 devices, FebSmart designed 5X electric safty fuse, 5X voltage stable capacitance and 5X voltage stable inductance. Do not worry data loss or burn USB 3.1 GEN2 devices now. Add super fast and easy install USB 3.1 GEN2 host controller card on Desktop PCs. Choose More Stable, Fast and Safe data connection with FebSmart.

Achieving 10 Gbps Data Rates in USB 3.1 GEN2 By Using Multiple INs and Hub Payload Buffering.

A.  1. Provide 3-Ports USB-A and 2-Ports USB-C USB 3.1 GEN2 superspeed plus 10Gbps max data transfer rate, 16Gbps total bandwidth. 2X faster than USB 3.0 (5Gbps), 20X faster than USB 2.0 (0.48Gbps). 2. Stream more Pixels video source such as 4K or 8K video source when works with external USB-C graphic cards.

B.  1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022. Need to install driver on Windows 7 (32/64bit) and Windows Server 2008, 2008R2(32/64bit). 2. Driver Free on MAC OS 10.9.x, 10.10.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x and later system. NOT works on MAC OS 10.11. x. 3. Supports most main stream Linux Kernels.

C.  1. Built in FebSmart Self-Powered Technology, no need to plug any power cable from computer power supply unit, enjoy super easy and safe installation. 2. Designed with 5X electric safty fuse, 5X voltage stable capacitance and 5X voltage stable inductance protect USB 3.1 GEN2 devices from overcurrent, overload ensure data security.

D.  1. Based on ASMedia ASM3142 USB 3.1 GEN2 16Gbps host controller and VIALab VL822 10Gbps USB 3.1 GEN2 HUB controller, will provide 16Gbps total bandwidth on 3X USB-A and 2X UBS-C Ports, each port will get 10Gbps max speed. Compatible with AMD, Intel, ARM and MAC hardware platforms. 2. Designed 1X Heat-sink on major chip, will help PCIE USB 3.1 GEN2 card core components stay away from overheat, make sure USB 3.1 GEN2 devices always stay at peak speed 10Gbps.

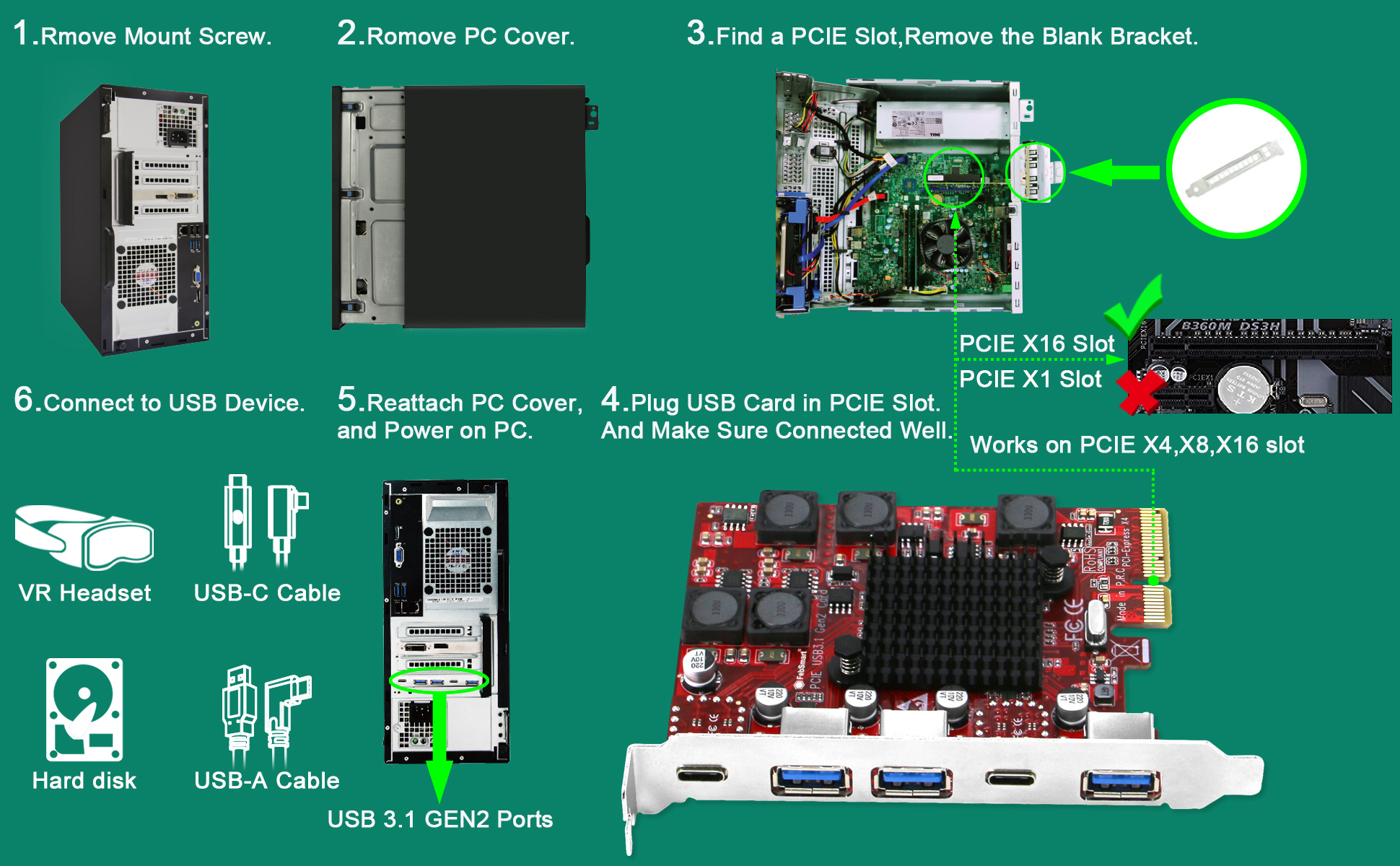

E.  1. PCI Express 3.0 X4 (X2 signal) design will compatible with PCIE 3.0/4.0 16Gbps, PCIE 2.0 10Gbps, and PCIE 1.0 5Gbps. 2. PCIE X4 interface will compatible with PCIE X4, X8, X16 slot, NOT support PCIE X1, X2 slot. 3. Users must make sure PCs Motherboard have 1X empty PCIE X16 slot before purchase.

F.  1. Mounted with full height bracket for standard size PCs. 2. DO NOT support Slim PCs.

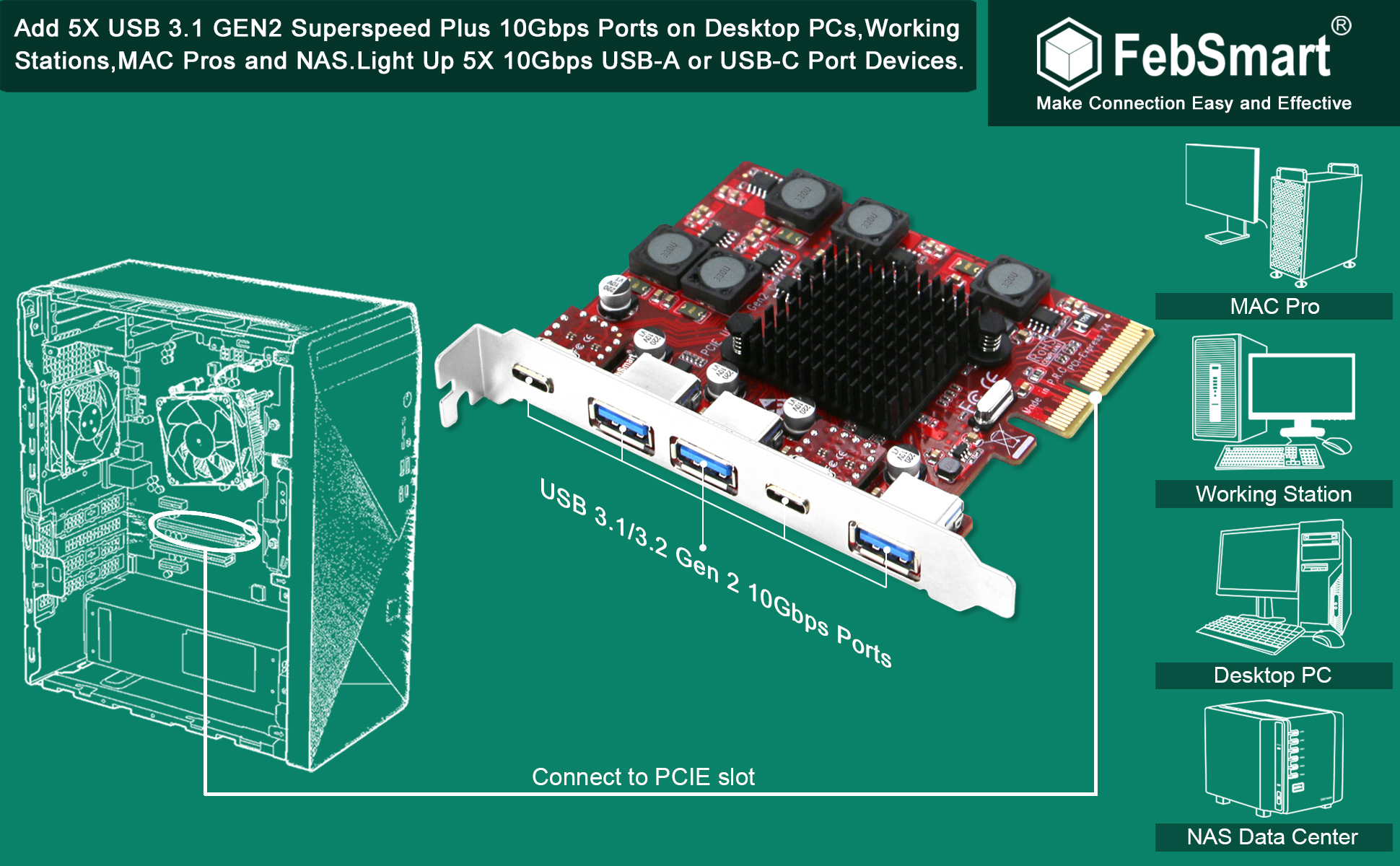

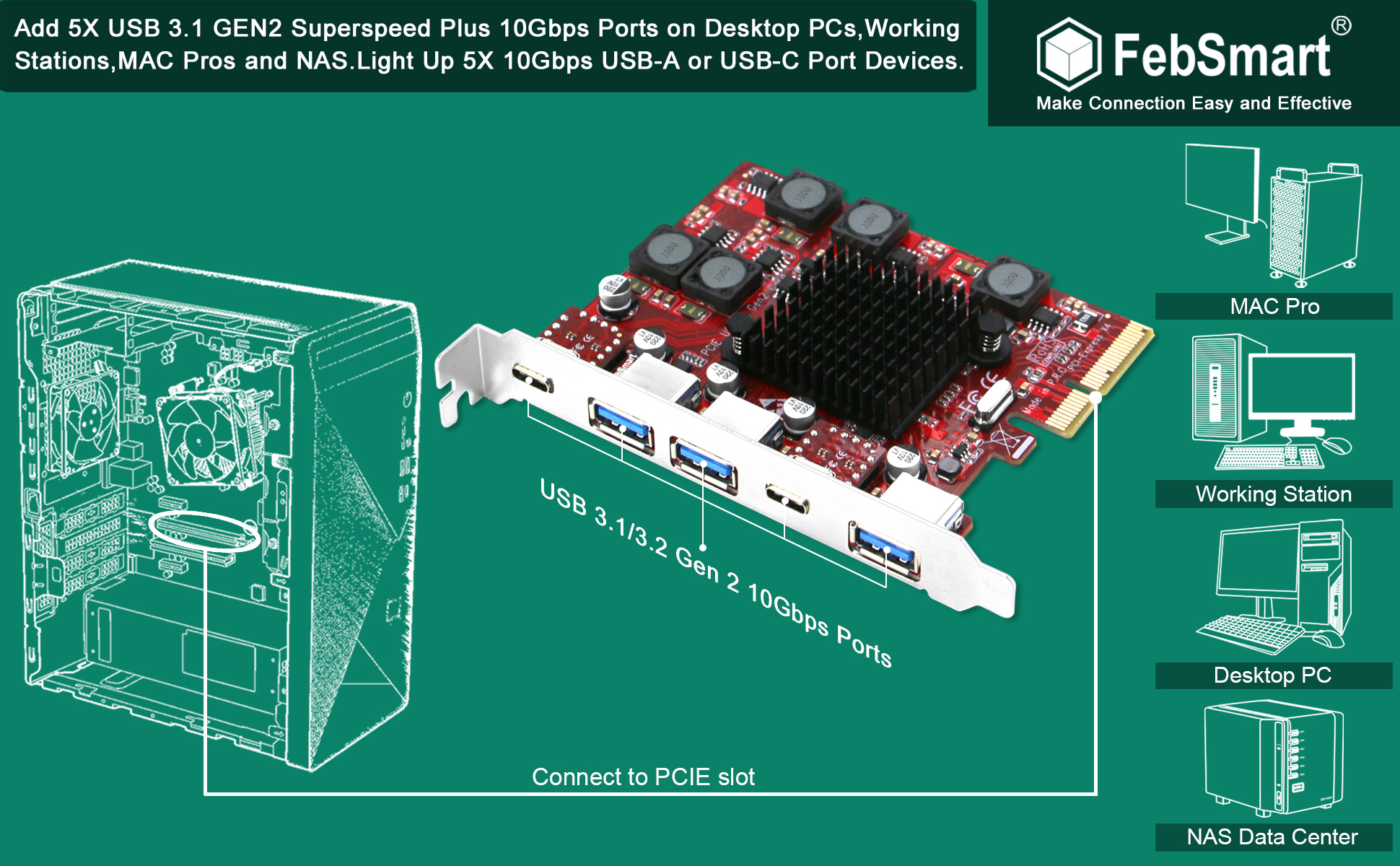

 FebSmart FS-A3C2-Pro will allow users add 5X USB 3.1 GEN2 (3X USB Type A and 2X USB Type C) superspeed plus 10Gbps ports on Desktop PCs, Working Stations, MAC Pros and NAS Data Centers for large transfer and live data storage. Built in FebSmart Self-Powered Technology, users do not need to plug any addtional power supply from PC’s PSU, but each USB 3.1 GEN2 port can get 5V/3A 15W power supply for connected high power consumption USB 3.1 GEN2 devices data transfer, which including NVME USB SSD enclosures, USB SATA SSD/HDD enclosures, VR-System, 10Gbps USB hubs and USB-A 4K video adapters. The 3X USB-A and 2X USB-C ports also provides stable and fast connection for normal USB 3.0 and USB 2.0 devices such as web cameras, mice, keyboard, smart phone, video capture, KVM switch, USB hub etc. The added on 3X USB-A and 2X USB-C ports will not occupy motherboard USB Main Lan speed, it's an extra bandwidth by PCI Express X4 on Desktop PCs.

Product Features:

1. Expand to 3X USB-A and 2X USB-C USB 3.1 GEN2 10Gbps ports on newly build Dektop PCs by PCIE 3.0 X4 interface.

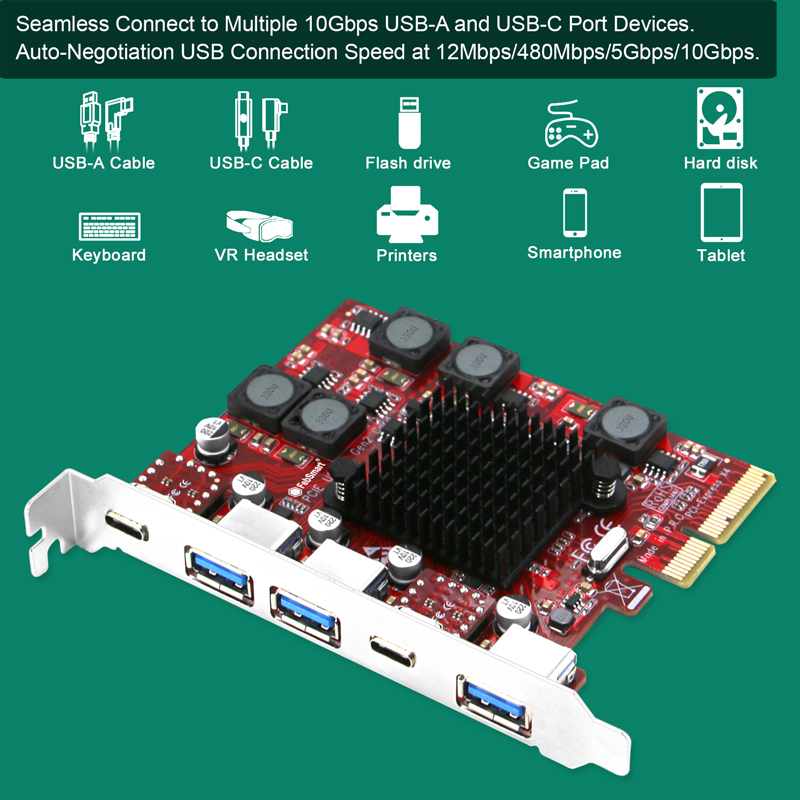

2. Support auto speed negotiation at USB 3.1 GEN 2 10Gbps, USB 3.0 5Gbps, USB 2.0 480Mbps, and USB 1.1 12Mbps.

3. PCIE 3.0 standard with PCIE X4 (X2 signal) interface design will compatible with PCIE 1.0, 2.0, 3.0, 4.0 standard on PCIE X4, X8, X16 slot.

4. Built in FebSmart Self-Powered Technology, no need any additional power supply from PSU, each USB-A port can get 5V/3A 15W power supply for high power consumption USB 3.1 GEN2 devices.

5. Mounted with full height bracket for standard size desktop PCs, no low-profile bracket inside, not works on slim size PCs.

6. PCI Express communicate total bandwidth: PCIE 3.0/4.0 16Gbps, PCIE 2.0 10Gbps, PCIE 1.0 5Gbps. Users better put this card on PCIE 3.0/4.0 slot on motherboard.

7. Support USB 3.1 GEN2 Multiple INS Technology, will complaint with USB 3.1 GEN2 specification revision 1.0 and Intel extensible host controller interface revision 1.1.

8. The added-on Heat-Sink will help PCIE USB 3.1 GEN2 card core components stay away from overheat, ensure connected USB 3.1 GEN2 devices always stay at peak speed 10Gbps.

System Requirements:

1. Plug and Play on Windows 11, 10, 8.x (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022. Need to install driver on Windows 7 (32/64bit) and Windows Server 2008, 2008R2(32/64bit).

2. Driver Free on MAC OS 10.9.x, 10.10.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x and later system. NOT works on MAC OS 10.11. x.

3. Supports most main stream Linux kernels.

Package: 1X FS-A3C2-Pro 1X User Manual 1X Mount-screw
