PCIE X8 Interface to 2X 10GbE SFP+ Ethernet Adapter, PCIE SFP+ 2X 10GbE SFP+ Fiber Interface Network Card
 1. FebSmart X710-DA2 is a PCIE 3.0 standard PCIE X8 interface to 2X 10GbE SFP+ Fiber port converged ethernet adapter. It is based on Intel Dual Port 10GbE Ethernet Controller X710-BM2, will provide reliable and unified 2X 10Gbps LAN and SAN networks. It is the foundation for server connectivity, providing broad interoperability, critical performance optimizations, and increased agility for Communications, Cloud, and Enterprise IT network solutions.
2. Major Controller: Intel Dual Port 10GbE Ethernet Controller X710-BM2; Network Interface: 2X 10GbE SFP+ Fiber Port, 10GBASE-SR, 10GBASE-LR and SFP+ Direct Attach Copper (DAC) Physical Media(10m); Network Type: LAN, SAN; Host Interface: PCIE 3.0 Protocol with PCIE X8 Interface, 64Gbps Total Bandwidth; Optical Transceiver Attached Speed: 10GbE, 1GbE; Direct Attached Cable Speed: 10GbE.
3. Support IEEE 802.3, IEEE 1588 and IEEE 802.1AS; Support Intel Ethernet Flow Director; Support MSI-X and Multiple Queues. Supports TX/RX IP, SCTP, TCP and UDP Checksum Offloading (IPV4, IPV6). Support Intel Virtualization Technology for Connectivity (VT-c): VMDq, PCI-SIG SR-IOV; Support Pre-boot Execution Environment (PXE). Support Unified Extensible Firmware Interface (UEFI). Support Storage Over Ethernet: iSCSI, NFS.
4. Need to Install driver on Windows 7, 8.x, 10, 11 32/64bit, Driver Free on Windows Server 2012, 2012R2, 2016, 2019, 2022. Linux need to install I40E driver. Support RHEL 9.3-9.4, 8.9-8.10, RHEL 9.0 - 9.2, 8.0 - 8.8, SLES 15 SP5, SLES 15 SP4 and previous, SLES 12 SP5, SLES 12 SP4 and previous; Support Ubuntu 22.04 LTS, Ubuntu 20.04 LTS and Debian 11; Support FreeBSD 14.0~13.3, 13.1 - 13.2, 12.0 - 12.3; Support VMWare ESXI systems.
5. ATTENTION: 1. PCIE X8 interface design, works on PCIE X8, X16 slot with active and open PCIE X8 or PCIE X16 Lane, or the X710-DA2 cannot get expected 2X 10Gbps. 2. Low profile bracket in the package and full height bracket mounted on this network adapter. 3. X710-DA2 MUST works with 10GBASE-SR, 10GBASE-LR Transceivers or SFP+ Copper Direct Attach (DAC) Cables, users need to purchase fiber module or LC cables separately.

Select Intel 2X 10GbE Ethernet Controller X710-BM2, Support LAN, SAN network.
Optical Transceiver Attached Speed: 10GbE, 1GbE; Direct Attached Cable Speed: 10GbE.
Support IEEE 802.3, IEEE 1588 and IEEE 802.1AS; Support Intel Ethernet Flow Director;
Support Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON).
Support Pre-boot eX Environment (PXE). Support Unified Extensible Firmware Interface (UEFI).
Based on PCI Express 3.0 Protocol with PCI Express X8 Interface, Provide 64Gbps Total Bandwidth.
Support MSI-X and Multiple Queues. Supports TX/RX IP, SCTP, TCP and UDP Checksum Offloading (IPV4, IPV6).
Support 10GBASE-SR, 10GBASE-LR Optical Transceivers and SFP+ Copper Direct Attach (DAC) Physical Media.
Support Intel Virtualization Technology for Connectivity (VT-c): VMDq, PCI-SIG SR-IOV; Support Storage Over Ethernet: FCoE, iSCSI, NFS.

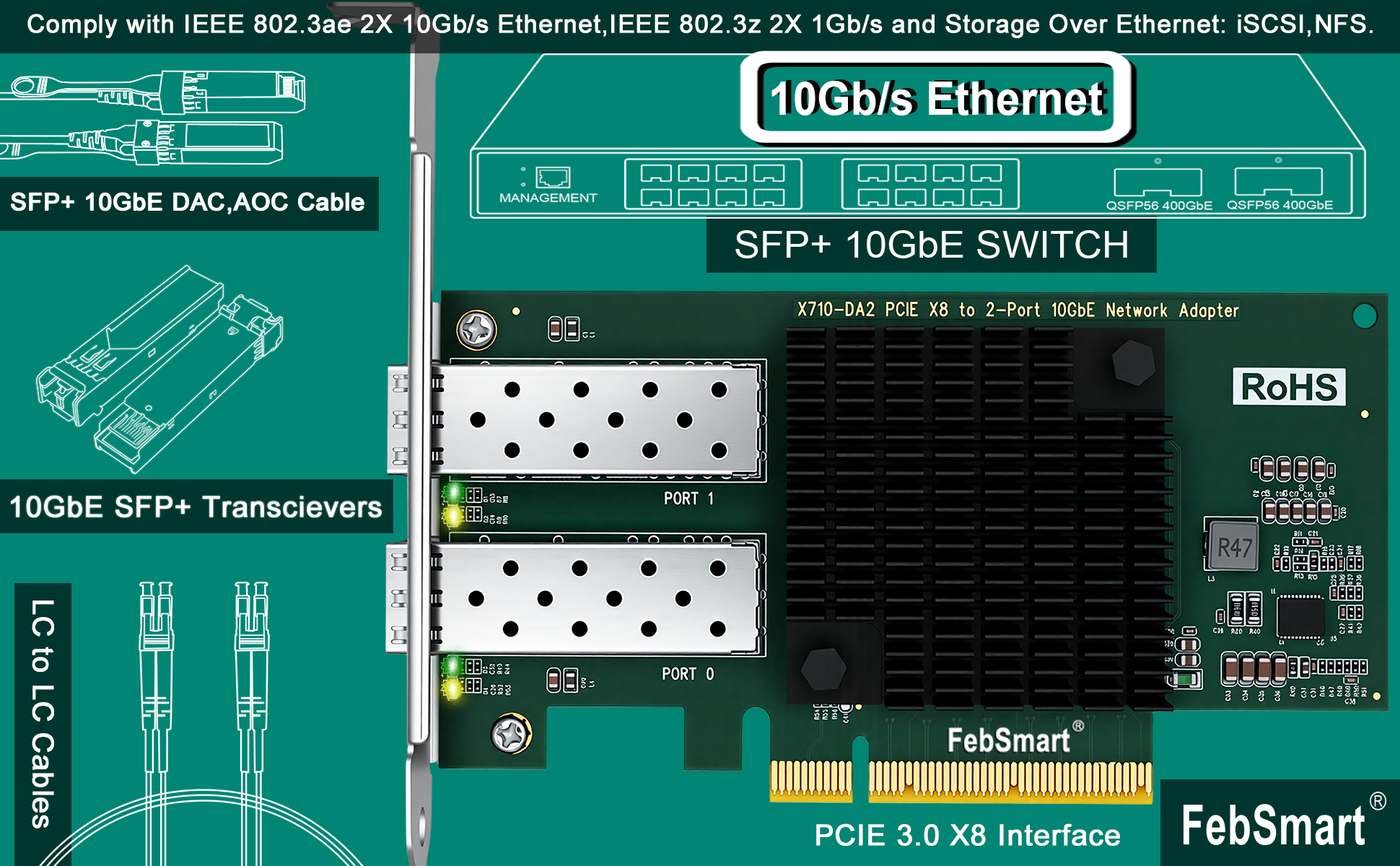

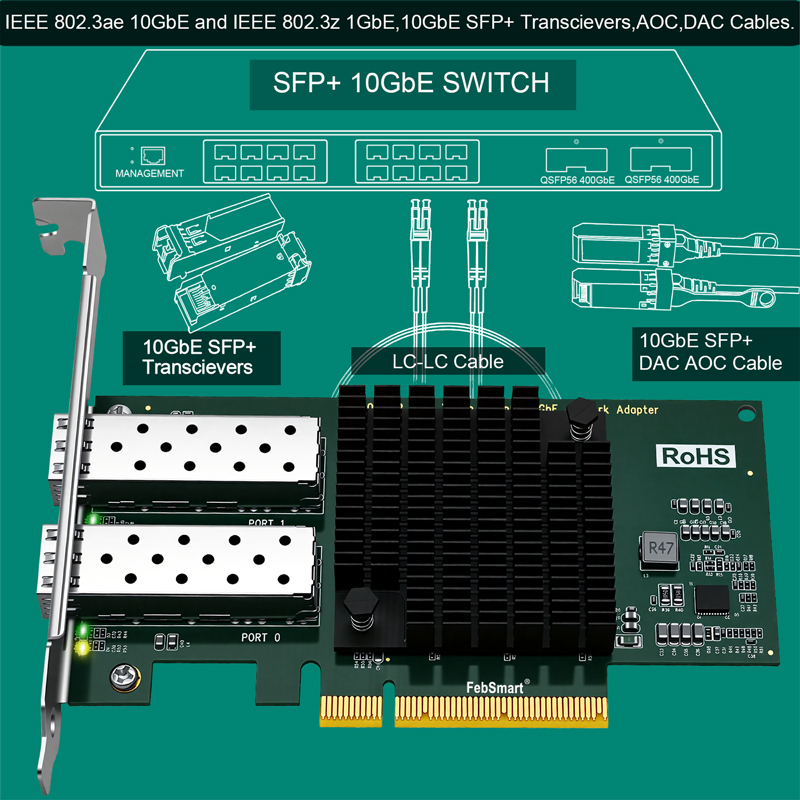

A. 1. Support 10GBASE-SR, 10GBASE-LR Optical Transceivers, Communication Speed 10GbE, 1GbE. 2. Support SFP+ Direct Attached (DAC) Cable or AOC Cable, Communication Speed 10GbE. 3. Support 10GbE Direct Attached (DAC) Cable Length 5 Meters

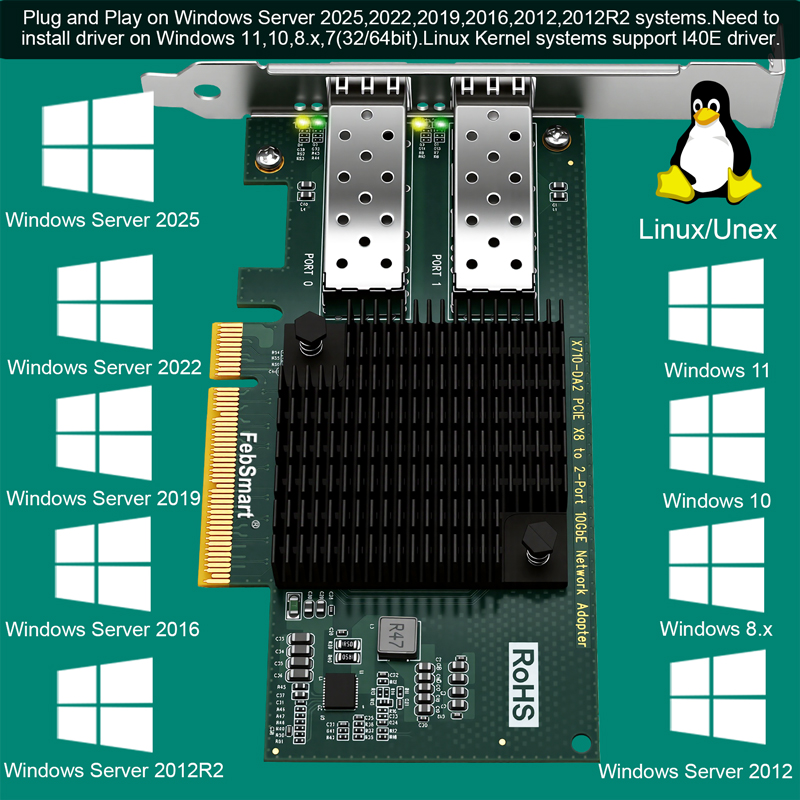

B. 1. Driver Free on Windows Server 2022, 2019, 2016, 2012R2, 2012, Need to Install Driver Windows 11, 10, 8.x, 7 64bit. 2. Linux Kernels Drivers I40E (Intel official site driver). 3. Linux Include: RHEL, SLES, Ubuntu, FreeBSD, VMWare ESXI.

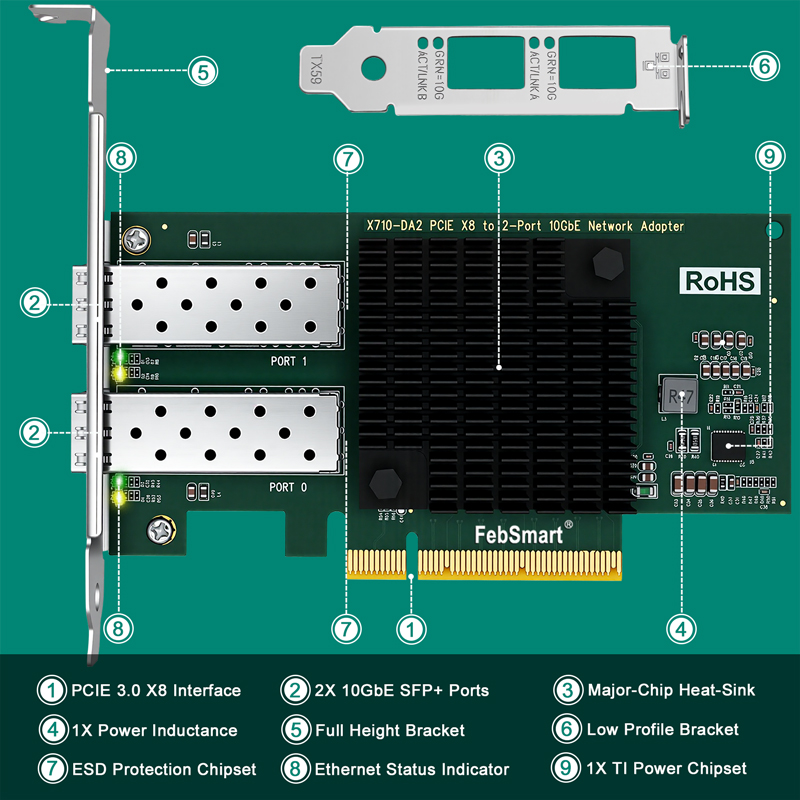

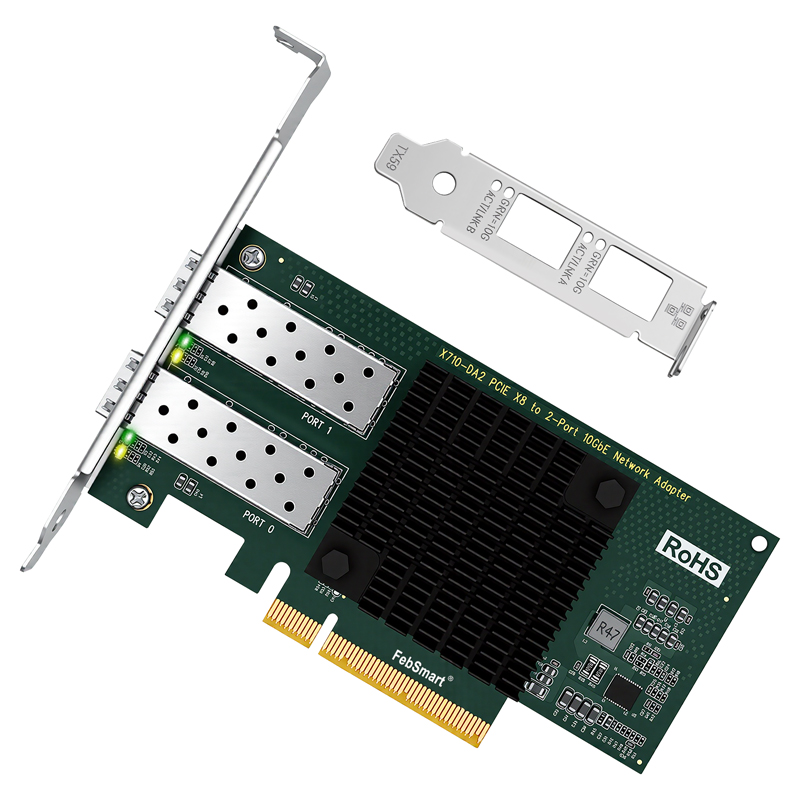

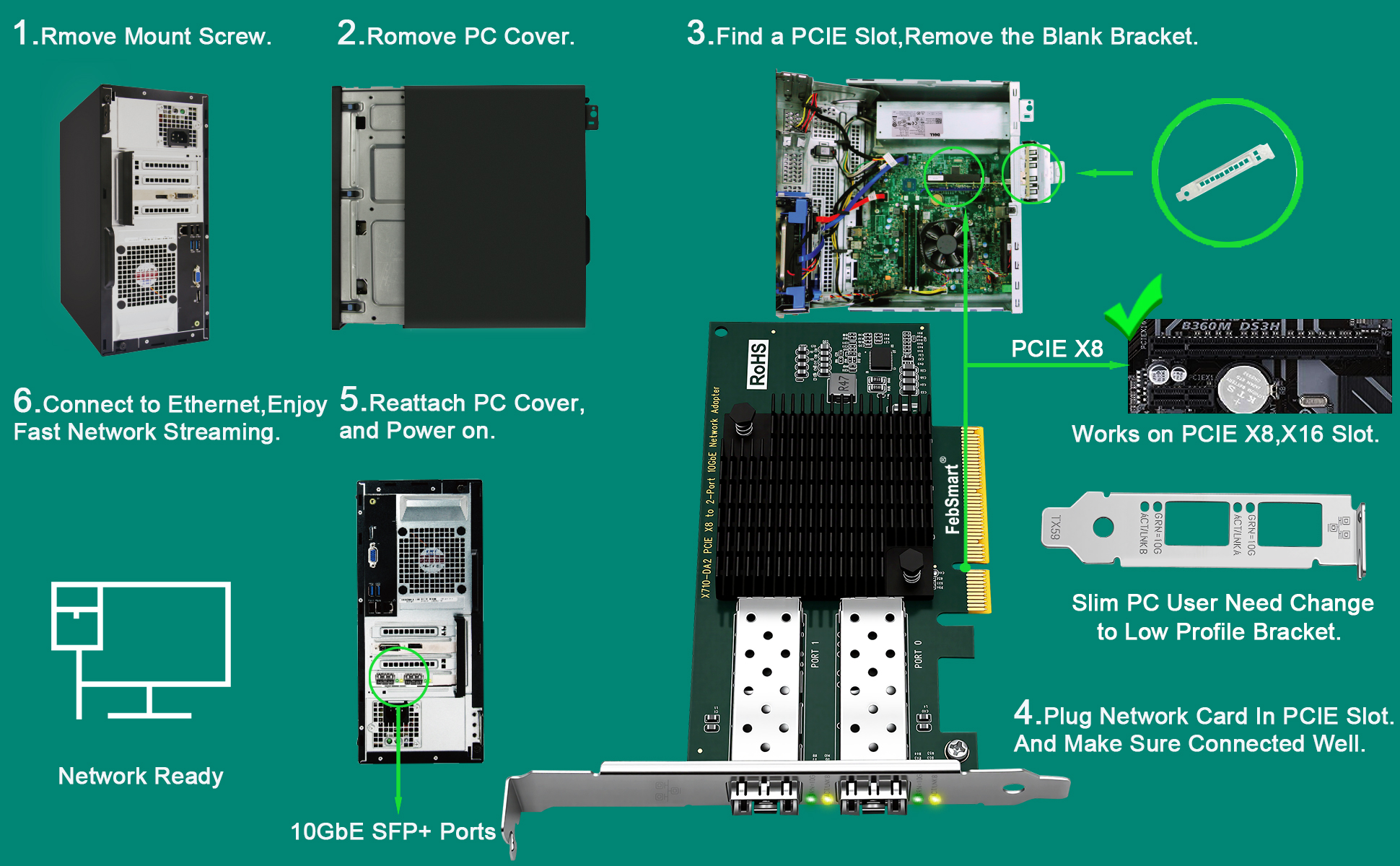

C. 1. Full Height Bracket Mounted on the PCIE NIC Card, Will Works on Standard Size PC. 2. Low Profile Bracket Packed in the Box, Will Works on Slim PC.

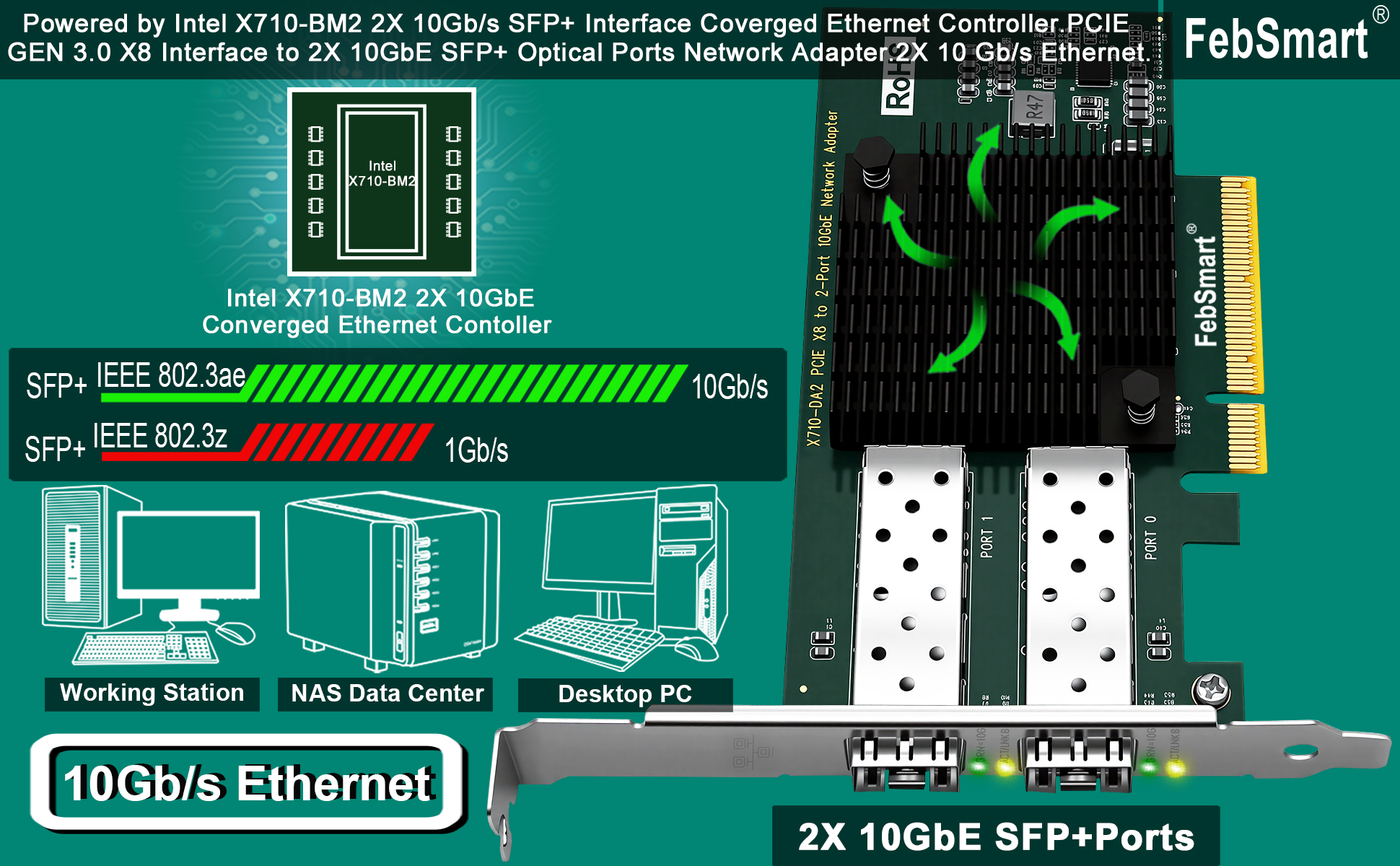

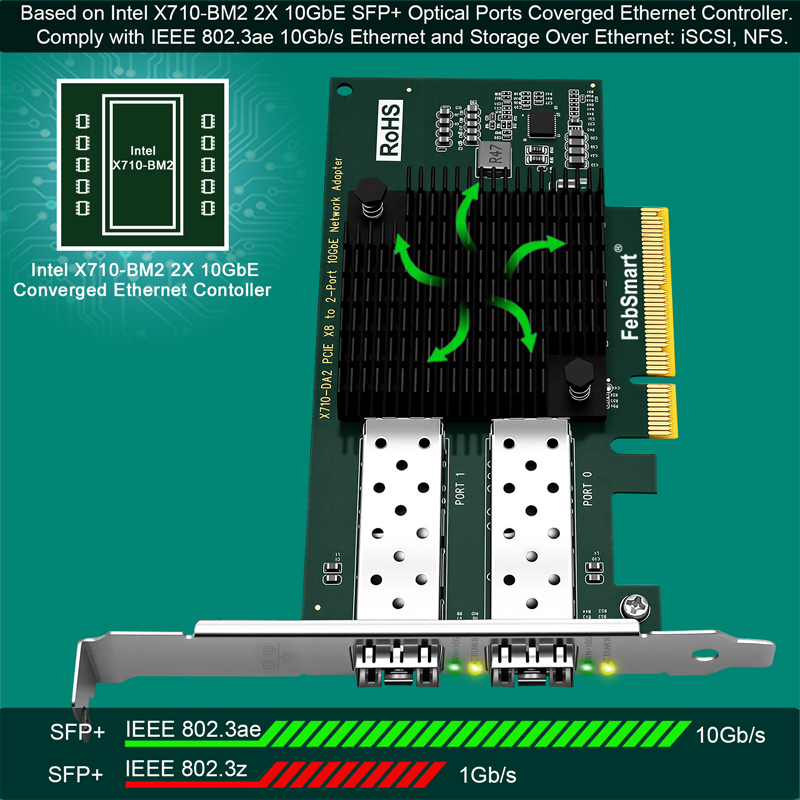

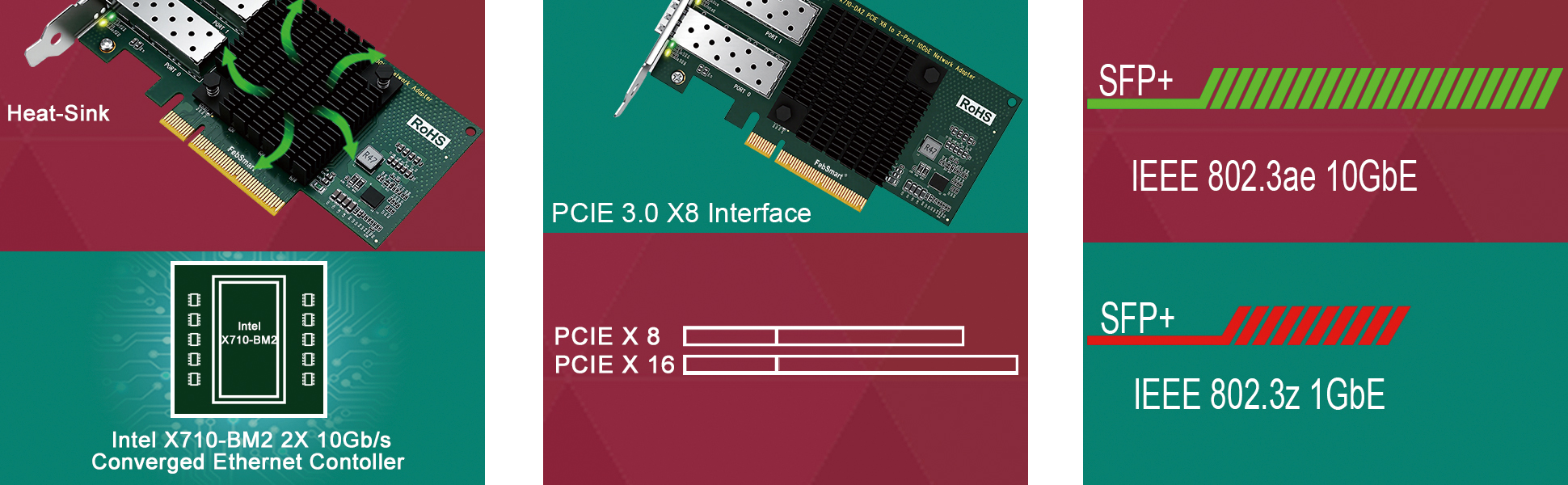

D. 1. Select Intel X710-BM2 2X 10 Gigabit Converged Ethernet Controller, Supports LAN, SAN Network.2. Support IEEE 1588, IEEE 802.3 and IEEE 802.1AS; Support MAC sec IEEE 802.1 AE.

E. 1. PCI Express 2.1 Protocol, will Compatible with PCIE 2.x, 3.x, 4.x, 5.x. 2. PCI Express X8 Interface, Will Compatible with PCIE X8, X16 Slot. 3. Provide 64Gbps Total Bandwidth, Ensure Each SFP+ TX and RX Pick Up 10GbE.

F. 1. 10Gbps Max Network Speed, 10X Faster than 1GbE. 2. 10GbE Network for 8K Video Streaming, the Good Choice for High Difination Gaming.

 FebSmart X710-DA2 is a PCIE 3.0 standard PCIE X8 interface to 2X 10GbE SFP+ Fiber port converged ethernet adapter. It is based on Intel Dual Port 10GbE Ethernet Controller X710-BM2, will provide reliable and unified 2X 10Gbps LAN and SAN networks. It is the foundation for server connectivity, providing broad interoperability, critical performance optimizations, and increased agility for Communications, Cloud, and Enterprise IT network solutions.

Technical Specifications:
    Select Intel 2X 10GbE Ethernet Controller X710-BM2, Support LAN, SAN network.
    Optical Transceiver Attached Speed: 10GbE, 1GbE; Direct Attached Cable Speed: 10GbE.
    Support IEEE 802.3, IEEE 1588 and IEEE 802.1AS; Support Intel Ethernet Flow Director;
    Support Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON).
    Support Pre-boot eX Environment (PXE). Support Unified Extensible Firmware Interface (UEFI).
    Support MSI-X and Multiple Queues. Supports TX/RX IP, SCTP, TCP and UDP Checksum Offloading (IPV4, IPV6).
    Support 10GBASE-SR, 10GBASE-LR Optical Transceivers and SFP+ Copper Direct Attach (DAC) Physical Media.
    Support Intel Virtualization Technology for Connectivity (VT-c): VMDq, PCI-SIG SR-IOV; Support Storage Over Ethernet: FCoE, iSCSI, NFS.

Compatible System:
    1. Driver Free on Windows Server 2022, 2019, 2016, 2012R2, 2012, Need to Install Driver Windows 11, 10, 8.x, 7 (32/64bit).
    2. Linux kernels drivers I40E (Intel official site driver).
    3. Support RHEL 9.3-9.4, 8.9-8.10, RHEL 9.0 - 9.2, 8.0 - 8.8, SLES 15 SP5, SLES 15 SP4 and previous, SLES 12 SP5, SLES 12 SP4 and previous; Support Ubuntu 22.04 LTS, Ubuntu 20.04 LTS and Debian 11; Support FreeBSD 14.0~13.3, 13.1 - 13.2, 12.0 - 12.3; Support VMWare ESXI.

Package: 1X X710-DA2, 1X Low Profile Bracket, 1X Mount Screw, 1X User Manual, 1X Mini CD.
