PCI Express Dual Band Wireless-AC Network Adapter 2.4GHz 300Mbps and 5GHz 867Mbps

 1. This FS-AC86SE offers fast and stable WiFi connection at 2.4GHz 300Mbps and 5GHz 867Mbps on Desktop PCs. Allow users get long range, few losses low latency WiFi network for internet surfing, file downloading, online phone call, online gaming, online video call and 4K ultra-HD video streaming.
2. Wi-Fi Protocol: IEEE 802.11 AC WiFi 5; Major Chipset: Qualcomm Atheros QCA6174A; Operation Frequency: 5GHz and 2.4GHz; Channel Utilization: 2.4GHz 20/40 MHz and 5GHz 20/40/80 MHz; Max Speed: 2.4GHz 300Mbps and 5GHz 867Mbps; Wireless Encryption: WEP, WPA, WPA2, WPA3, WPA-PSK, WPA2-PSK (TKIP/AES).
3. Advanced 802.11 AC features such as 2X2 MIMO and Transmit Beamformee to increase network capacity, as well as maximal likelihood decoding, low-density parity check, maximum ratio combining for robust link connection. Equipped with 2X 3dBi detachable omni-directional dual band antenna will enhance WiFi stability and WiFi reception range.
4. System Requirements: Plug and Play on Windows 10, 11 (32/64bit) and Windows Server 2012, 2012R2, 2016, 2019, 2022. Need to Install Driver on Windows XP,7, 8.x (32/64bit) and Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bit). Linux users please refer ATH10K driver.
5. PCIE X1 interface design, will compatible on PCIE X1, X2, X4, X8, X16 slot. Based on PCIE 2.0 standard will work on PCIE 1.0, 2.0, 3. 0, 4.0 slot. Low profile bracket and full-height bracket inside will work on slim PCs and standard size PCs.

Based on Qualcomm Atheros QCA6174A Wireless AC network solution provide excellent performance wireless network connectivity and high quality audio transmission.
Advanced 802.11ac features such as MIMO and TX Beamformee to increase network capacity, as well asmaximal likelihood (ML) decoding,low-density paritycheck (LDPC),maximum ratio combining (MRC) for robust link connection.
Make sure device get 2.4GHz 300 Mbps and 5GHz 867Mbps max wireless throughput and enough bandwidth for internet surfing,online gaming and 4K ultra HD video streaming etc.

A.  Provide dual band wireless network connection at 2.4GHz 300Mbps and 5GHz 867Mbps. Stream Pro HD and 4K video source instantly,get the WiFi signal anywhere in home or office. Move the desktop PCs in home and office no wire ethernet cable limitation anymore.

B.  Plug and Play on Windows 10, 8.1, 8 (32/64bits), Windows Server 2012, 2012R2, 2016, 2019 (32/64bit). Need to Install driver on Windows 7, Windows Server 2003, 2003R2, 2008, 2008R2 (32/64bits). Linux users please refer ATH10K. NOT works on Windows Vista, XP.

C.  Super Easy to install on supported system. Plug and Play on Windows 10, 8.1, 8 (32/64bits), Windows Server 2012, 2012R2, 2016, 2019 (32/64bit). Seamless connect to most wireless encryption routers/APs:WEP,WPA,WPA2, WPA3, WPA-PSK, WPA2-PSK (TKIP/AES).

D.  Select the Qualcomm Atheros QCA6174A wireless AC network solution will provide solid wireless network connection. The Qualcomm Atheros network solution will compatible AMD,Intel and ARM platform device such as PCs,Working Stations and NAS.

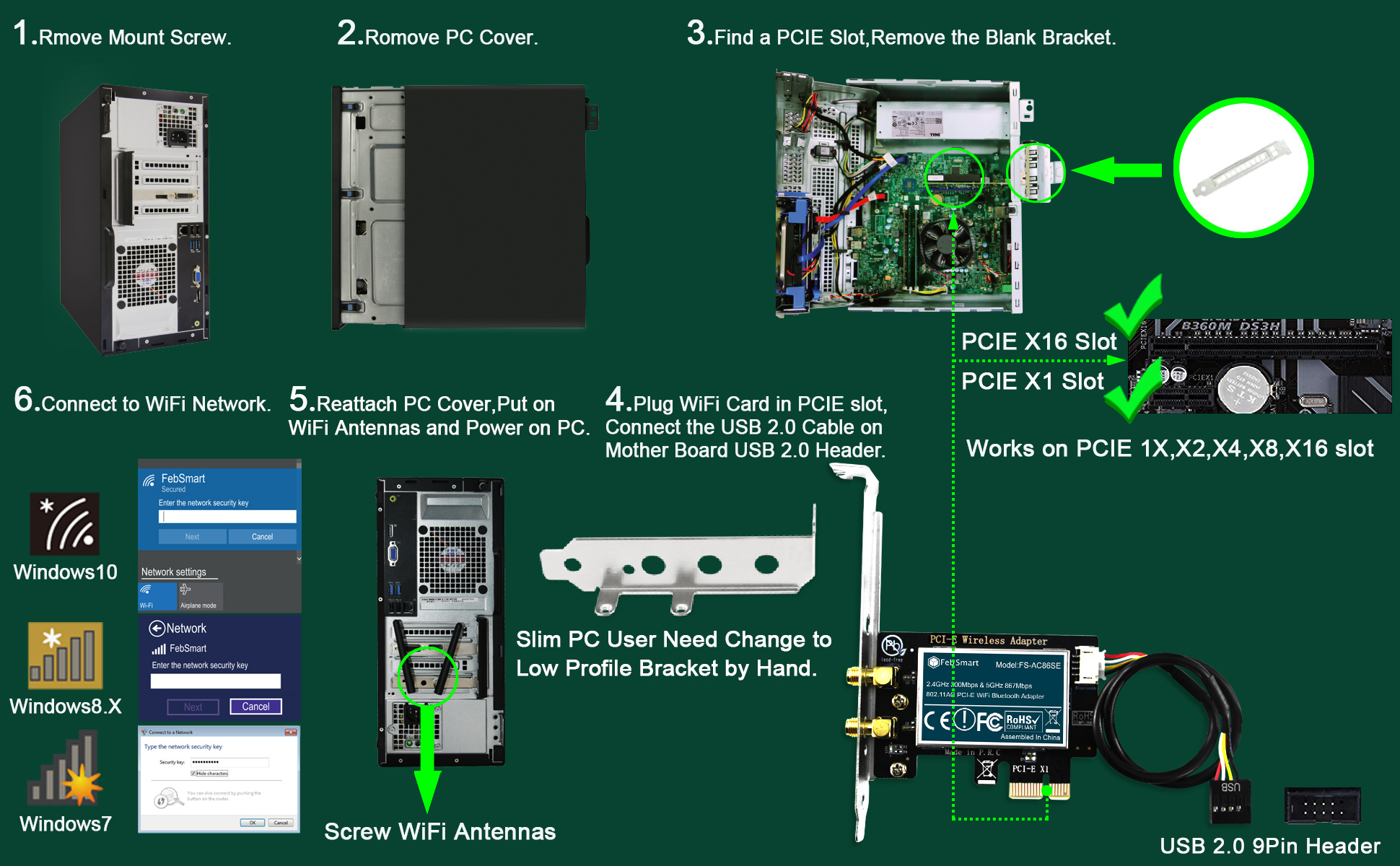

E.  PCI Express 2.0 standard design,will compatible with PCIE 1.0, 2.0, 3.0, 4.0 standard. PCI Express X1 interface design will works on PCI Express X1, X2, X4, X8, X16 slot. Make sure the desktop PCs have at least one active and open PCI Express slot.

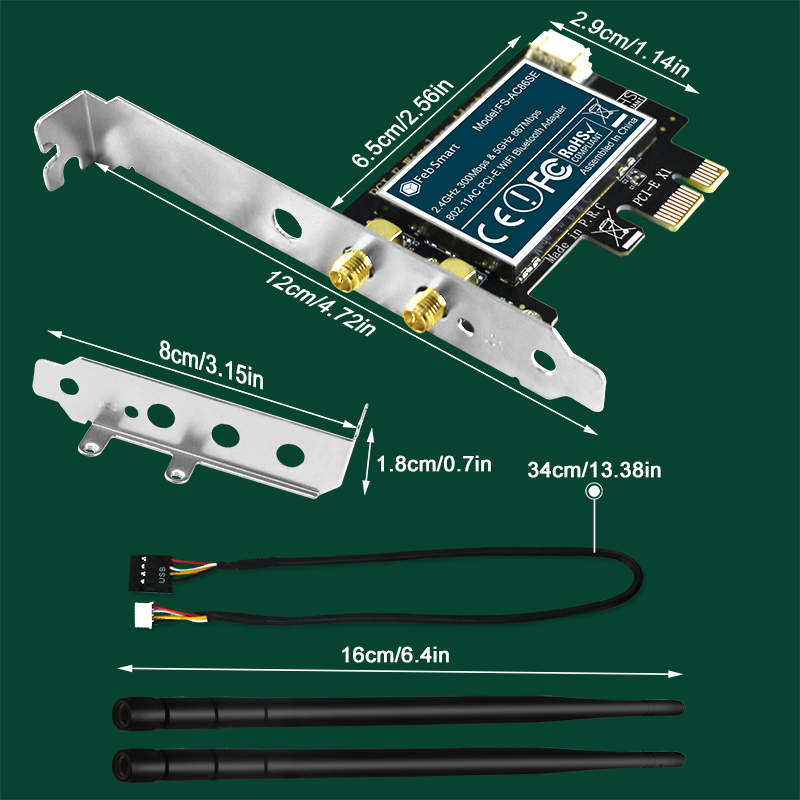

F.  Mounted with the full height bracket,will works on the full size PCs and working stations. Packed with the low profile bracket,will works on the slim PCs and working stations.

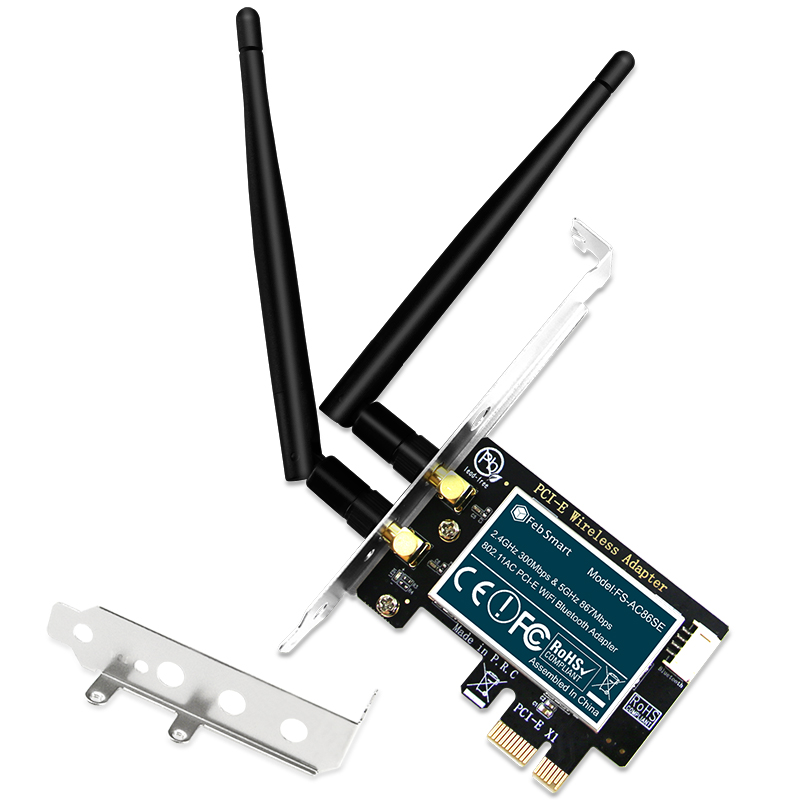

 FS-AC86SE is an wireless-ac 1200Mbps PCIe WiFi Adapter. It offers lighting fast, stable, few loss ,little delay wireless network connectivity at 2.4GHz 300Mbps and 5GHz 867Mbps. It is based on Qualcomm Atheros QCA6174A Network solution,with advanced 802.11ac features such as 2X MIMO and Transmit Beamformee to increase network capacity. The build in WiFi Stereo Adapter allow PCs connect to WiFi audio device TWS earphones and speakers. It is an easy and cost-effective way to add wireless network on (home or office use) PCs and Working Stations for audio transmission,internet surfing,online gaming and 4K ultra HD video streaming etc.

Product Features:

Model Number: FS-AC86SE;

Major Chip: Qualcomm Atheros QCA6174A

Max Wi-Fi Speed: 2.4GHz 40MHz 300Mbps, 5GHz 80MHz 867Mbps

Operation Frequency: 5GHz and 2.4GHz; Wireless Technology: 2X MIMO,TX Beamformee

Working Mode: Wi-Fi Adapter (Receiver) and Wireless AP; Compatible Device: Standard and Mini Size PCs (Working stations)

Wireless Standard: IEEE 802.11AC WiFi 5,Will backward compatible with IEEE 802.11 A/B/G/N/AC/AX wireless Router, AP and ISP

Product Specifications:

    Based on Qualcomm Atheros QCA6174A Wireless AC network solution provide excellent performance wireless network connectivity and high quality audio transmission.
    Advanced 802.11ac features such as MIMO and TX Beamformee to increase network capacity, as well asmaximal likelihood (ML) decoding,low-density paritycheck (LDPC),maximum ratio combining (MRC) for robust link connection.
    Make sure device get 2.4GHz 300 Mbps and 5GHz 867Mbps max wireless throughput and enough bandwidth for internet surfing,online gaming and 4K ultra HD video streaming etc.

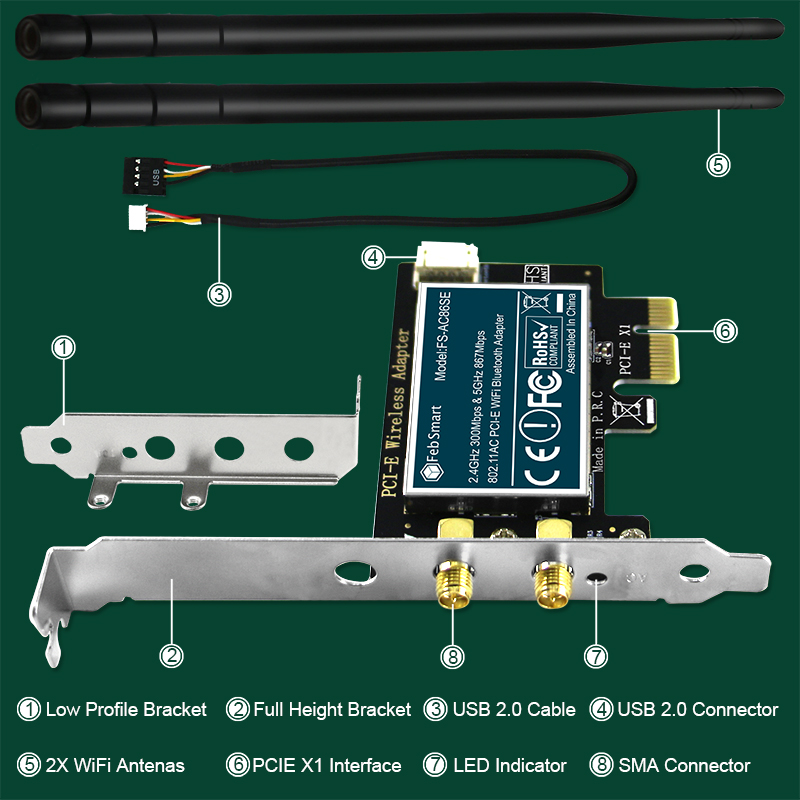

Package List: 1X FS-AC86SE 1X User Manual 2X 3dBi Antenna 1XMounting Screw 1X USB 2.0 Cable 1X Low Profile Bracket
